1778560

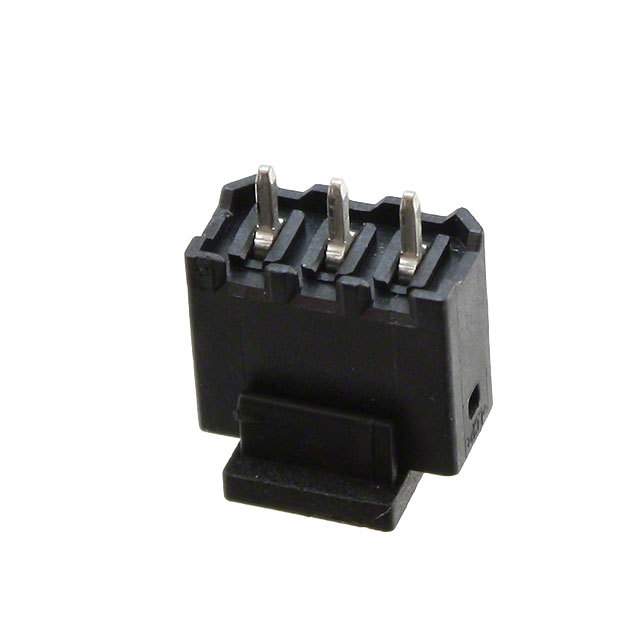

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1778560 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1778560 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1778560 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 3POS VERT 2.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 330 pcs | 660 pcs | 990 pcs | ||
|---|---|---|---|---|---|
| $0.223 | $0.205 | $0.189 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1778560 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS VERT 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 124782 pcs | Data sheet | 1778560 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - IEC | 160V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON PTSM | Screw Size | - |
| Positions Per Level | 3 | Plug Wire Entry | - |
| Pitch | 0.098" (2.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 277-2302-2 PTSM0,5/3-HV-2,5-THRR32 |
Operating Temperature | - |
| Number of Positions | 3 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.295" (7.50mm) |
| Ingress Protection | - | Housing Material | Liquid Crystal Polymer (LCP) |
| Header Orientation | Vertical | Features | Pick and Place Cap |
| Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) Vertical Through Hole | Current - IEC | 6A |
| Contact Tail Length | 0.083" (2.10mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
