Home > Products > Connectors, Interconnects > Heavy Duty Connectors - Housings, Hoods, Bases > 1772447

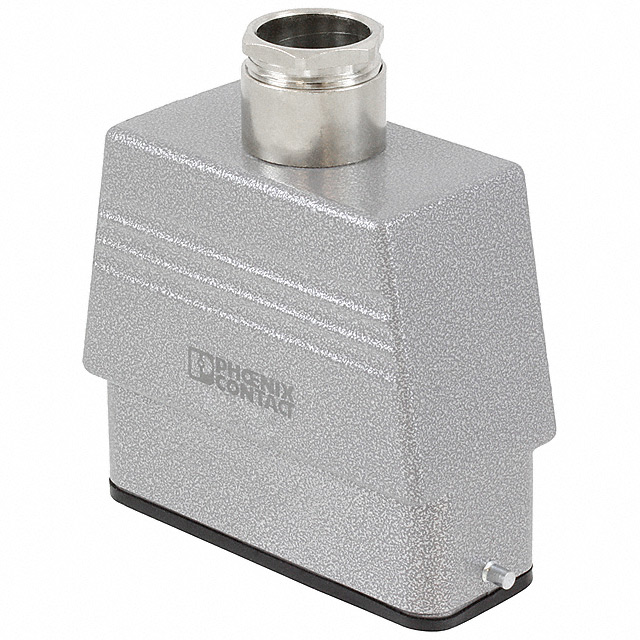

1772447

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1772447 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1772447
Manufacturer	Phoenix Contact
Description	CONN HOOD TOP ENTRY SZD25 PG16
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3705 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$10.291

Product parameter
Data sheet

Product parameter

Part Number	1772447	Manufacturer	Phoenix Contact
Description	CONN HOOD TOP ENTRY SZD25 PG16	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3705 pcs	Data sheet	1772447
Category	Connectors, Interconnects	Thread Size	PG16
Style	Top Entry	Size / Dimension	3.130" L x 1.161" W x 2.835" H (79.50mm x 29.50mm x 72.00mm)
Size	D25	Series	HEAVYCON® D
Packaging	Bulk	Other Names	1772447-ND 277-4469 HC-D 25-TFL-72/M1PG16G HC-D25-TFL-72/M1PG16G
Operating Temperature	-40°C ~ 125°C	Lock Location	Locking Clip (1) on Base Bottom
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP65 - Dust Tight, Water Resistant
Housing Material	Aluminum, Die Cast	Housing Finish	Powder Coated
Housing Color	Gray	Features	-
Connector Type	Hood
