1766945

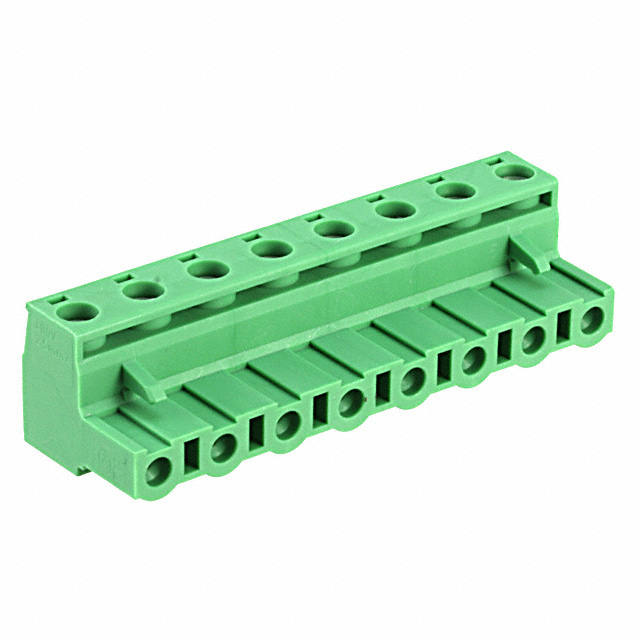

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1766945 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1766945 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1766945 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 8POS STR 7.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $5.126 | $4.986 | $4.66 | $4.287 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.961 | $3.774 | $3.541 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1766945 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS STR 7.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9127 pcs | Data sheet | 1766945 |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 300V | Voltage - IEC | 1kV |
| Type | Plug, Female Sockets | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON GMSTB |
| Screw Size | M3 | Positions Per Level | 8 |
| Plug Wire Entry | 180° | Pitch | 0.295" (7.50mm) |
| Packaging | Bulk | Other Names | 1766945-ND 277-6275 GMSTB2,5/8-ST |
| Operating Temperature | - | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.591" (15.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.295" (7.50mm) 180° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | 12A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
