1766806

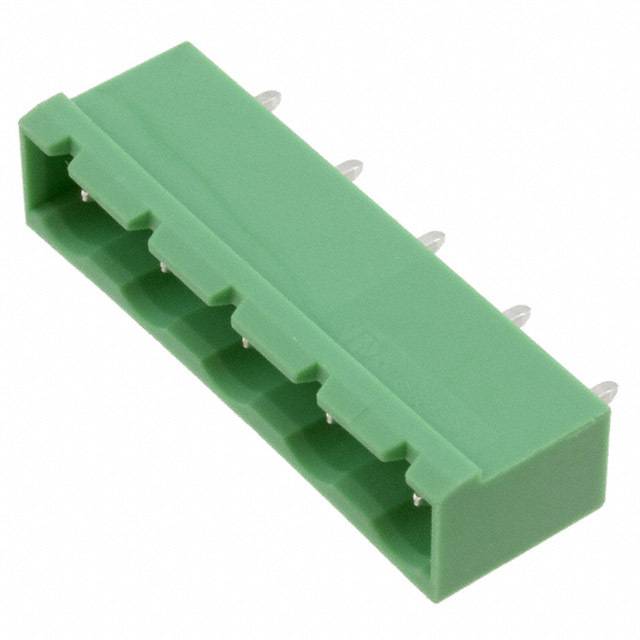

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1766806 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1766806 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1766806 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 5POS VERT 7.62MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.093 | $1.048 | $1.002 | $0.975 | $0.911 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.838 | $0.775 | $0.738 | $0.693 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1766806 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 5POS VERT 7.62MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55298 pcs | Data sheet | 1766806 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON GMSTBVA |
| Screw Size | - | Positions Per Level | 5 |
| Plug Wire Entry | - | Pitch | 0.300" (7.62mm) |
| Packaging | Bulk | Other Names | 1766806-ND 277-6388 GMSTBVA 2,5/ 5-G-7,62 GMSTBVA2,5/5-G-7,62 |
| Operating Temperature | - | Number of Positions | 5 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.472" (12.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) Vertical Through Hole |
| Current - UL | 15A | Current - IEC | 12A |
| Contact Tail Length | 0.154" (3.90mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
