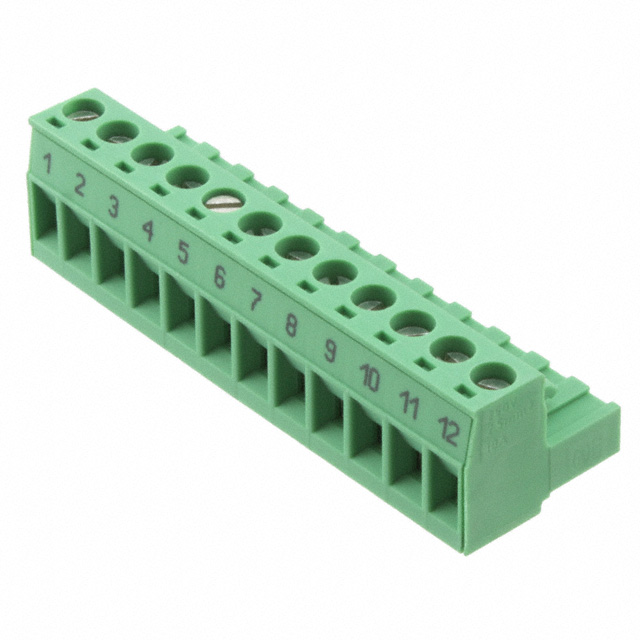

1765328
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1765328 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1765328 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1765328 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 12POS STR 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $4.149 | $4.034 | $3.771 | $3.469 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $3.205 | $3.054 | $2.866 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1765328 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 12POS STR 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13802 pcs | Data sheet | 1765328 |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - IEC | 630V | Type | Plug, Female Sockets |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Series | COMBICON MSTB | Screw Size | M3 |
| Positions Per Level | 12 | Plug Wire Entry | 180° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 1765328-ND 277-6964 MSTB 2,5/12-ST BD:1-12 MSTB2,5/12-STBD:1-12 |
Operating Temperature | - |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.591" (15.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | Positions Stamped, Retention Latches (Non-Wire Side) |
| Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) | Current - IEC | 12A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
