1762602

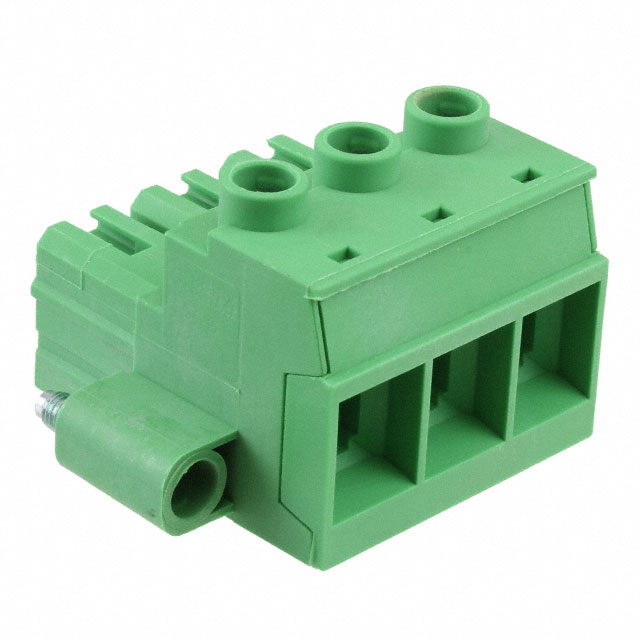

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1762602 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1762602 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1762602 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 3POS STR 15MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $11.488 | $11.173 | $10.442 | $9.607 | $8.876 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1762602 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS STR 15MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4441 pcs | Data sheet | PCB Connection_Housing Catalog1762602 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | 20mm |
| Wire Gauge or Range - mm² | 0.5-35mm² | Wire Gauge or Range - AWG | 2-16 AWG |
| Voltage - UL | 600V | Voltage - IEC | 1kV |
| Type | Plug, Blade Sockets | Torque - Screw | 2.5-4.5 Nm (22.1-39.8 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON PC |
| Screw Size | M5 | Positions Per Level | 3 |
| Plug Wire Entry | 180° | Pitch | 0.591" (15.00mm) |
| Packaging | Bulk | Other Names | 1762602-ND 277-11506 PC 35 HC/ 3-STF-15,00 PC35HC/3-STF-15,00 |
| Operating Temperature | - | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.575" (40.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Mating Flange | Detailed Description | 3 Position Terminal Block Plug, Blade Sockets 0.591" (15.00mm) 180° Free Hanging (In-Line) |
| Current - UL | 115A | Current - IEC | 125A |
| Contact Tail Length | - | Contact Mating Finish | Silver |
| Contact Material | - | Color | Green |
