1762266

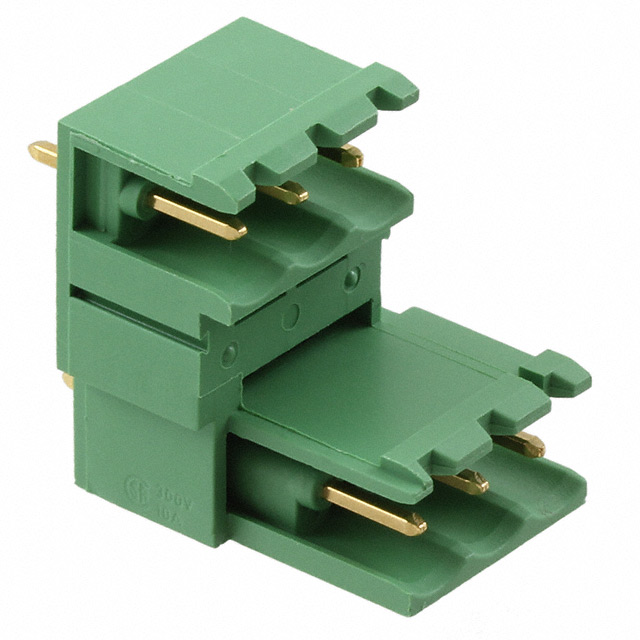

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1762266 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1762266 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1762266 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 6POS VERT 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.619 | $1.574 | $1.471 | $1.353 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $1.25 | $1.191 | $1.118 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1762266 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 6POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28823 pcs | Data sheet | 1762266 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Header, Male Pins, Shrouded (2 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON MDSTBV |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 1762266-ND 277-13949 MDSTBV 2.5/ 3-G-5.08 AU MDSTBV2.5/3-G-5.08AU |
| Operating Temperature | - | Number of Positions | 6 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.870" (22.10mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | Vertical |
| Features | - | Detailed Description | 6 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) Vertical Through Hole |
| Current - UL | 12A | Current - IEC | 10A |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Gold |
| Contact Material | - | Color | Green |
