1755703

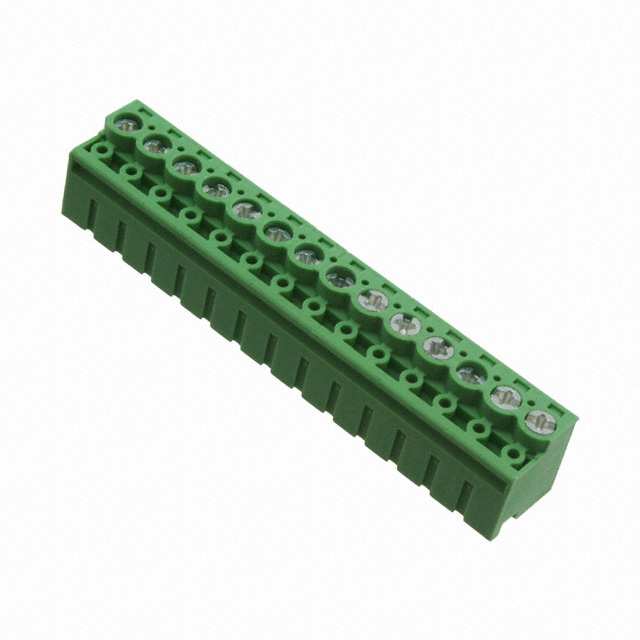

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1755703 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1755703 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1755703 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 14POS 90DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $1.26 | $1.225 | $1.144 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1755703 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 14POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32831 pcs | Data sheet | 1755703 |
| Category | Connectors, Interconnects | Wire Strip Length | 6mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 14-28 AWG |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Plug for Unshrouded Header | Torque - Screw | 0.35-0.4 Nm (3.1-3.5 Lb-In) |
| Termination Style | Screw - Clamping Yoke (Tension Sleeve) | Series | COMBICON PT |
| Screw Size | - | Positions Per Level | 14 |
| Plug Wire Entry | 90° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 277-2243 PT 1.5/14-PH-5.0 PT1,5/14-PH-5,0 |
| Operating Temperature | - | Number of Positions | 14 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.518" (13.15mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | - | Detailed Description | 14 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line) |
| Current - UL | 10A | Current - IEC | 10A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
