1755503

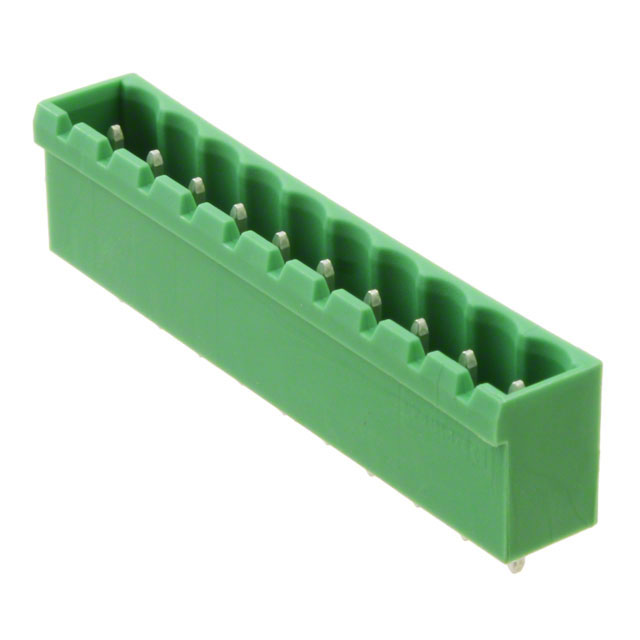

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1755503 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1755503 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1755503 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 10POS VERT 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.164 | $1.115 | $1.085 | $1.014 | ||
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.933 | $0.862 | $0.821 | $0.771 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1755503 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 10POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51137 pcs | Data sheet | 1755503 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 400V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON MSTBVA |
| Screw Size | - | Positions Per Level | 10 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 277-1139 MSTBVA 2.5/10-G MSTBVA2,5/10-G |
| Operating Temperature | - | Number of Positions | 10 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.472" (12.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole |
| Current - UL | 12A | Current - IEC | 12A |
| Contact Tail Length | 0.154" (3.90mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
