1746978
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1746978 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1746978 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1746978 |
|---|---|
| Manufacturer | Phoenix Contact |

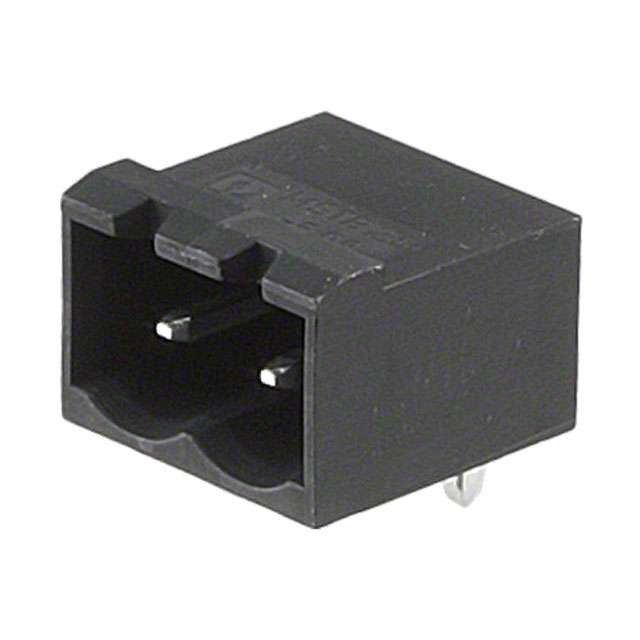

| Description | TERM BLOCK HDR 2POS 90DEG 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.203 | $0.198 | $0.185 | $0.17 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.157 | $0.15 | $0.14 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1746978 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 141822 pcs | Data sheet | 1746978 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - IEC | 250V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | COMBICON MSTBA | Screw Size | - |
| Positions Per Level | 2 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1746978-ND 277-6765 MSTBA 2,5/ 2-G-5,08 BK MSTBA2,5/2-G-5,08BK |
Operating Temperature | - |
| Number of Positions | 2 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.339" (8.61mm) |
| Ingress Protection | - | Housing Material | - |
| Header Orientation | 90°, Right Angle | Features | - |
| Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole | Current - IEC | 12A |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
