1725510

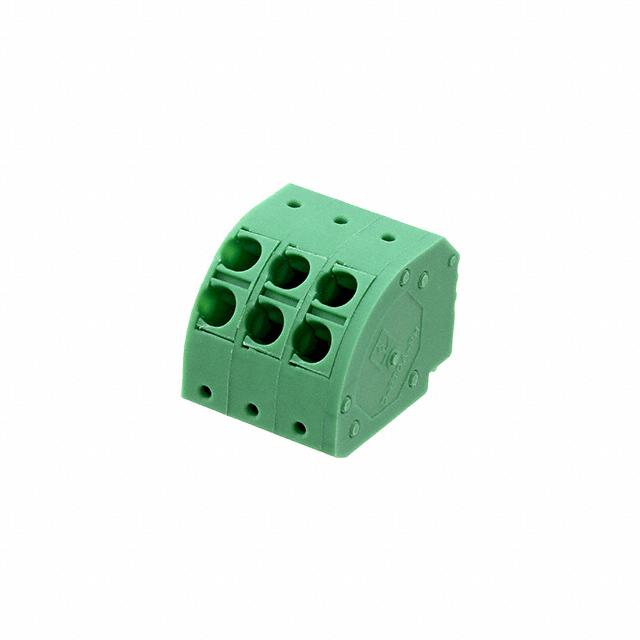

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1725510 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1725510 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1725510 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK PLUG 3POS 45DEG 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.45 | $0.432 | $0.413 | $0.402 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.376 | $0.346 | $0.319 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1725510 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS 45DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65815 pcs | Data sheet | 1725510 Datasheet1725510 |
| Category | Connectors, Interconnects | Wire Strip Length | 10mm |
| Wire Gauge or Range - mm² | 0.2-2.5mm² | Wire Gauge or Range - AWG | 14-24 AWG |
| Voltage - UL | 300V | Voltage - IEC | 630V |
| Type | Plug for Unshrouded Header | Torque - Screw | - |
| Termination Style | Screwless - Spring Cage, Tension Clamp | Series | COMBICON PTDA |
| Screw Size | - | Positions Per Level | 3 (Mate), 6 (Input) |
| Plug Wire Entry | 45° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 1725510-ND 277-13806 PTDA2,5/3-PH-5,0 |
| Operating Temperature | - | Number of Positions | 3 |
| Number of Levels | 1 (Mate), 2 (Input) | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.630" (16.00mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | - | Detailed Description | 3 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 45° Free Hanging (In-Line) |
| Current - UL | 13.5A | Current - IEC | 13.5A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Green |
