1706875

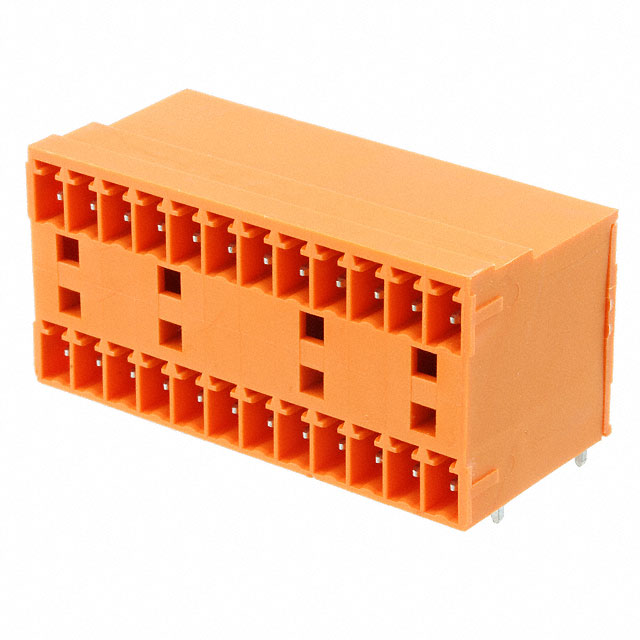

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1706875 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1706875 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1706875 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 24POS 3.81MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $5.24 | $5.095 | $4.762 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $4.381 | $4.048 | $3.857 | |||
- Product parameter
Product parameter
| Part Number | 1706875 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 24POS 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10011 pcs | Data sheet | |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 300V | Voltage - IEC | 160V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | COMBICON MCD |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | - | Pitch | 0.150" (3.81mm) |
| Packaging | Bulk | Other Names | 1706875-ND 277-12307 MCD 1,5/12-G1-3,81-OG MCD1,5/12-G1-3,81-OG |
| Operating Temperature | - | Number of Positions | 24 |
| Number of Levels | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.894" (22.71mm) | Ingress Protection | - |
| Housing Material | - | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 24 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole |
| Current - UL | 8A | Current - IEC | 8A |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | - | Color | Orange |
