1689996

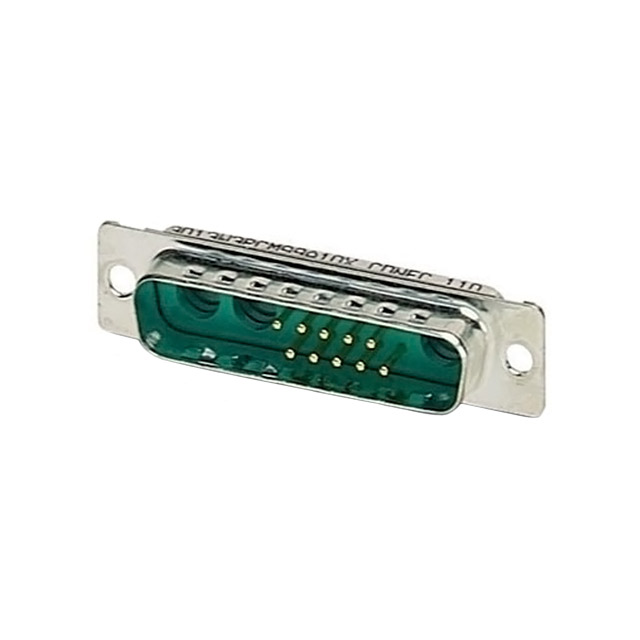

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1689996 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1689996 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1689996 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN D-SUB PLUG 13P STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.539 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1689996 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN D-SUB PLUG 13P STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8312 pcs | Data sheet | VARIOSUB D-Sub 25 |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | 250V | Termination | Solder Cup |
| Shell Size, Connector Layout | 3 (DB, B) - 13C3, 13W3 | Shell Material, Finish | Steel, Yellow Chromate Plated |
| Series | PLUSCON | Packaging | Bulk |
| Other Names | VS-25-ST-DSUB-3P-10S VS25STDSUB3P10S |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 13 (10 + 3 Coax or Power) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Grounding Indents | Detailed Description | 13 (10 + 3 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, Combo |
| Color | - | Backset Spacing | - |
