1688825

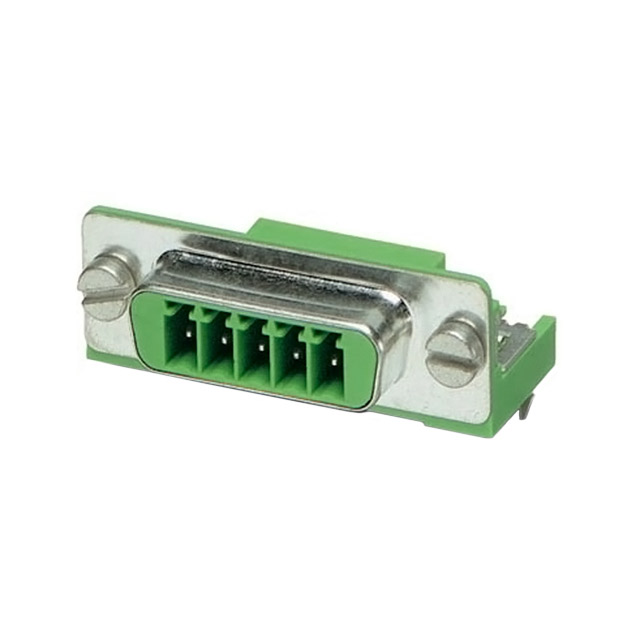

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1688825 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1688825 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1688825 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN D-TYPE RCPT 5POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $6.78 | $6.238 | $5.763 | $5.492 | $5.153 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1688825 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN D-TYPE RCPT 5POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7665 pcs | Data sheet | 16888251688825 Datasheet |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - IEC | 250V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | POWER SUBCON | Screw Size | - |
| Positions Per Level | 5 | Plug Wire Entry | - |
| Pitch | 0.138" (3.50mm) | Packaging | Bulk |
| Other Names | 1688825-ND 277-13674 VS-PSC 1 5/5-M |
Operating Temperature | -20°C ~ 80°C |
| Number of Positions | 5 | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.539" (13.70mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | 90°, Right Angle | Features | Board Lock, DB15 Shape, Mating Flange |
| Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole | Current - IEC | 8A |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Green |
