1688382

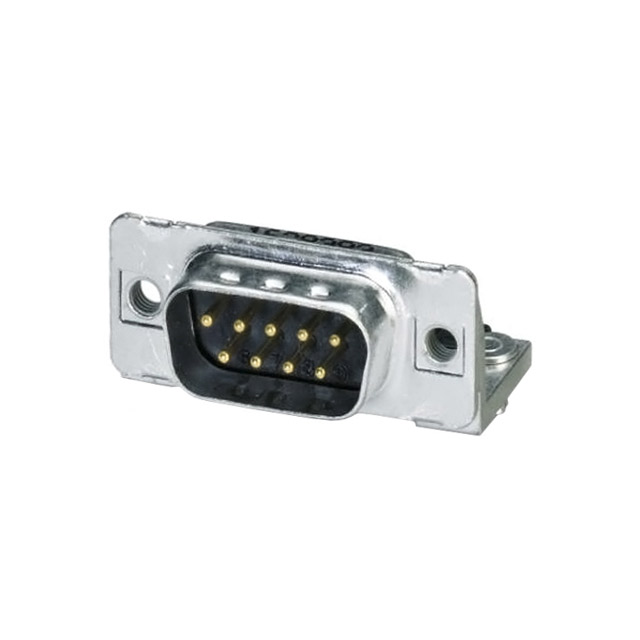

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1688382 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1688382 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1688382 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN D-SUB PLUG 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $4.92 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1688382 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6721 pcs | Data sheet | VARIOSUB D-Sub 9 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Yellow Chromate Plated |
| Series | PLUSCON | Packaging | Bulk |
| Other Names | VS-09-ST-DSUB-ER VS09STDSUBER |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester, Glass Filled | Flange Feature | Housing/Shell (M3) |
| Features | Board Lock, Grounding Indents, Mounting Brackets | Detailed Description | 9 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 5A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | - | Backset Spacing | 0.370" (9.40mm) |
