1688230

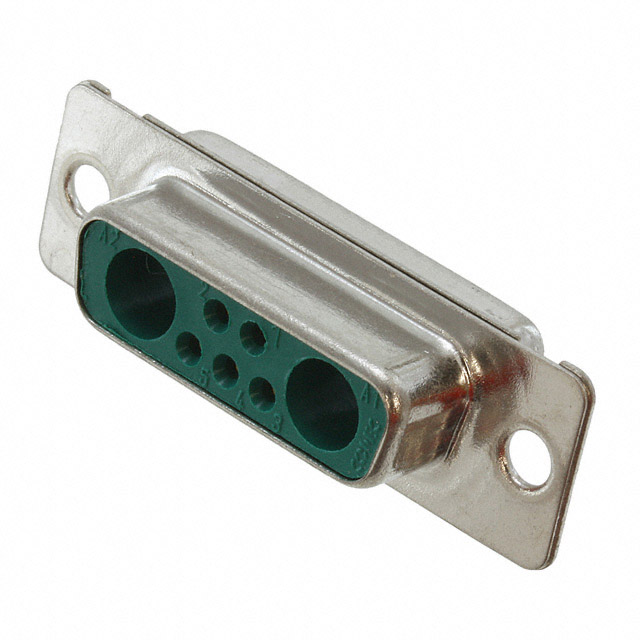

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1688230 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1688230 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1688230 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN DSUB RCPT 7POS STR SLDR CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $2.96 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1688230 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN DSUB RCPT 7POS STR SLDR CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12110 pcs | Data sheet | VARIOSUB D-Sub 15 |
| Category | Connectors, Interconnects | Wire Gauge | 20 AWG |
| Voltage Rating | 250V | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 | Shell Material, Finish | Steel, Yellow Chromate Plated |
| Series | PLUSCON | Packaging | Bulk |
| Other Names | 1688230-ND 277-7299 VS-15-BU-DSUB-2P-5S |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions | 7 (5 + 2 Coax or Power) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Flange Feature | Housing/Shell (Unthreaded) |
| Features | - | Detailed Description | 7 (5 + 2 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector |
| Current Rating | 5A | Contact Type | Signal and Coax or Power (Not Included) |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, Combo |
| Color | - | Backset Spacing | - |
