1685518

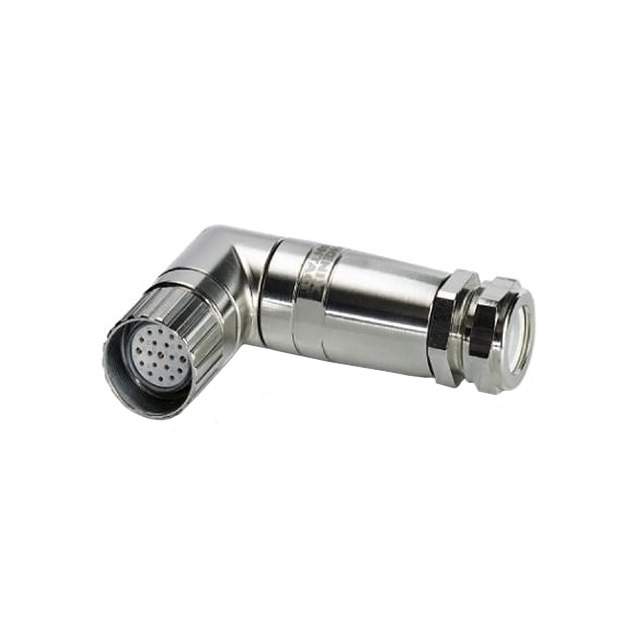

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1685518 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1685518 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1685518 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN PLUG FMALE 19PS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $42.789 | |||||
- Product parameter
Product parameter
| Part Number | 1685518 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN PLUG FMALE 19PS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 802 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder Cup | Shielding | Shielded |
| Shell Size, MIL | - | Shell Size - Insert | M23-19 |
| Shell Material | Gadolinium-Zinc | Shell Finish | Nickel |
| Series | RC | Packaging | Bulk |
| Other Names | RC/TWGM/KVD/LBL16+3 RCTWGMKVDLBL16+3 |
Orientation | - |
| Operating Temperature | -20°C ~ 125°C | Number of Positions | 19 (16 + 3 Power) |
| Mounting Type | Free Hanging (In-Line), Angled | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polybutylene Terephthalate (PBT) | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Features | Backshell, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 19 (16 + 3 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup Gold | Current Rating | 10A |
| Contact Material | Copper Zinc | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Silver | Cable Opening | 0.374" ~ 0.571" (9.50mm ~ 14.50mm) |
| Backshell Material, Plating | - | Applications | - |
