1681156

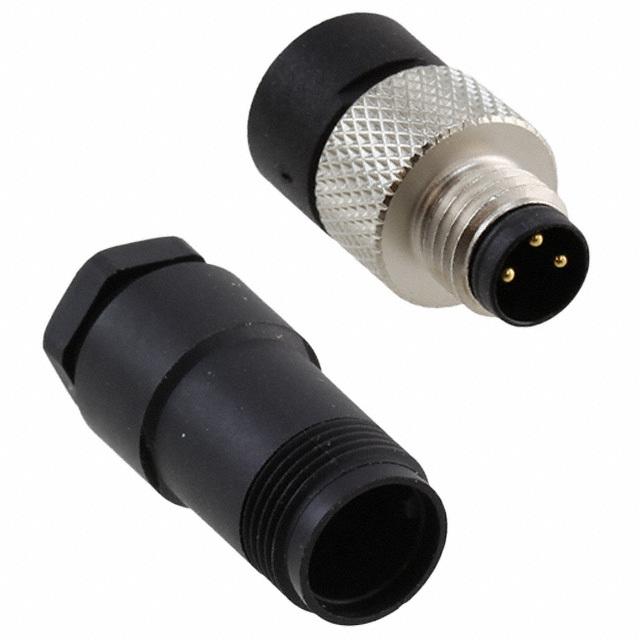

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1681156 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1681156 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1681156 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN PLUG MALE 3POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $5.468 | $5.03 | $4.648 | $4.429 | $4.156 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1681156 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN PLUG MALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8999 pcs | Data sheet | 1681156 |
| Category | Connectors, Interconnects | Voltage Rating | 48VAC, 60VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M8-3 |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | SACC | Packaging | Bulk |
| Other Names | 1681156-ND 277-4201 SACC-M 8MS-3CON-M SACC-M8MS-3CON-M |
Orientation | A |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 3 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA), Nylon | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Backshell | Fastening Type | Threaded |
| Detailed Description | 3 Position Circular Connector Plug, Male Pins Solder Cup Gold | Current Rating | 4A |
| Contact Material | Copper Zinc | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Plug, Male Pins |
| Color | Black, Silver | Cable Opening | 0.138" ~ 0.197" (3.50mm ~ 5.00mm) |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) | Applications | - |
