1609565

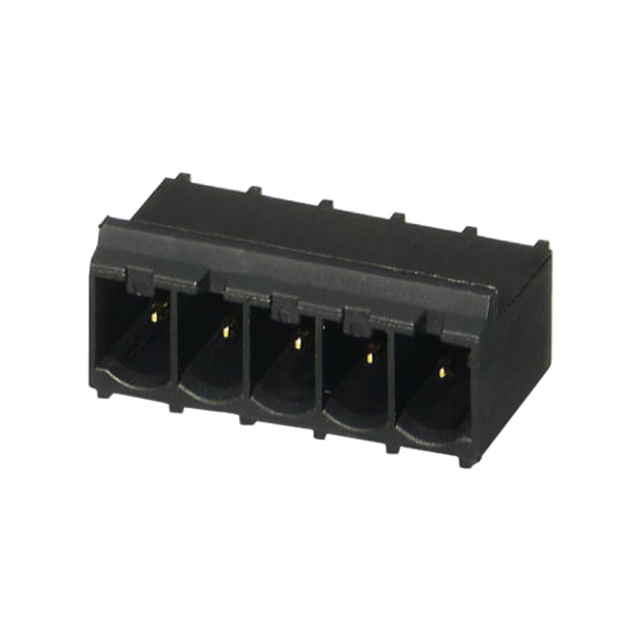

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1609565 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1609565 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1609565 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | TERM BLOCK HDR 5POS VERT 5.08MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $1.044 | $1.014 | $0.948 | $0.872 | ||
| 250 pcs | 500 pcs | 1000 pcs | |||
| $0.806 | $0.768 | $0.72 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1609565 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK HDR 5POS VERT 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49744 pcs | Data sheet | 1609565 Datasheet1609565 |
| Category | Connectors, Interconnects | Wire Strip Length | - |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | - |
| Voltage - UL | 24V | Type | Header, Male Pins, Shrouded (4 Side) |
| Torque - Screw | - | Termination Style | Solder |
| Series | PROFINET MSTB | Screw Size | - |
| Positions Per Level | 5 | Plug Wire Entry | - |
| Pitch | 0.200" (5.08mm) | Packaging | Bulk |
| Other Names | 1609565-ND 277-13563 VS-MSTBVA 2 5/ 5-GB-5 08-BK-A |
Operating Temperature | -40°C ~ 70°C |
| Number of Positions | 5 | Number of Levels | 1 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.516" (13.11mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | Vertical |
| Features | - | Detailed Description | 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole |
| Current - UL | 16A | Current - IEC | 16A |
| Contact Tail Length | 0.122" (3.10mm) | Contact Mating Finish | Gold |
| Contact Material | Copper Alloy | Color | Black |
