1526169

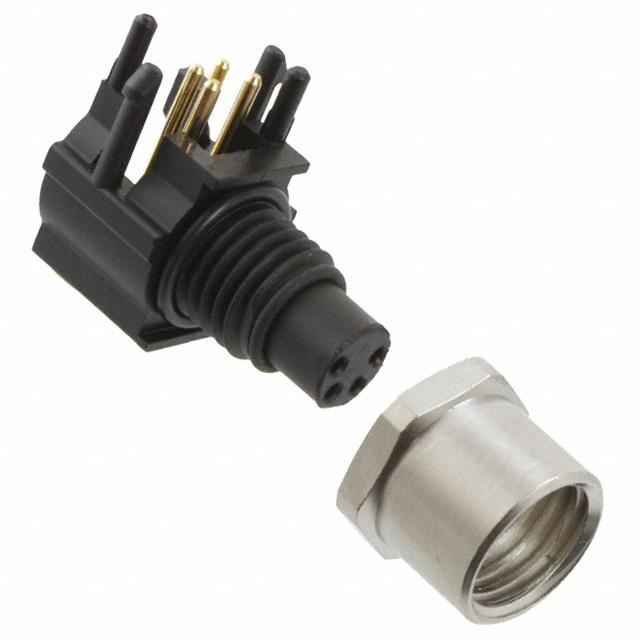

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1526169 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1526169 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1526169 |
|---|---|
| Manufacturer | Phoenix Contact |
| Description | CONN RCPT FMALE 4POS GOLD SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | ||
|---|---|---|---|---|---|
| $6.65 | $6.215 | $5.718 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.283 | $5.034 | $4.723 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1526169 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN RCPT FMALE 4POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7566 pcs | Data sheet | 1526169 |
| Category | Connectors, Interconnects | Voltage Rating | 50VAC, 60VDC |
| Termination | Solder | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | M8-4 |
| Shell Material | Brass | Shell Finish | Nickel |
| Series | DSIV | Packaging | Bulk |
| Other Names | 1526169-ND 277-2737 SACC-DSIV-M 8FS-4CON-L 90 SACC-DSIV-M8FS-4CON-L90 |
Orientation | A |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 4 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Bulkhead |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Board Guide, Board Lock | Fastening Type | Threaded |
| Detailed Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Gold | Current Rating | 4A |
| Contact Material | Copper Tin | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Female Sockets |
| Color | Black, Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | - |
