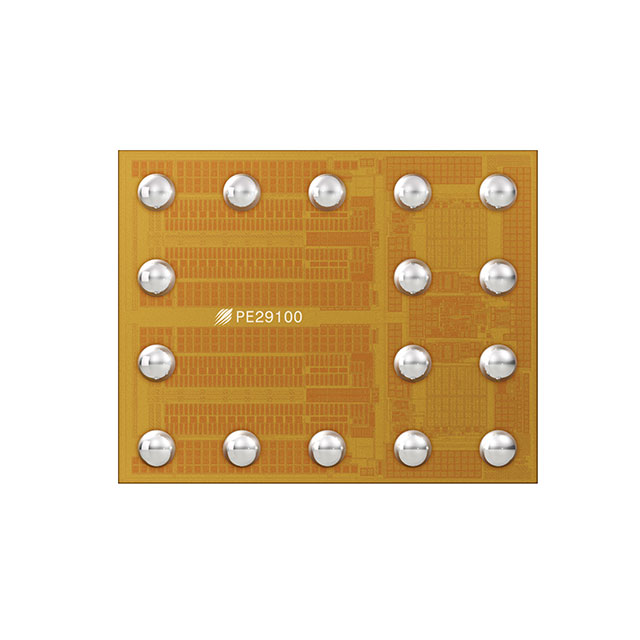

PE29100A-X
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PE29100A-X with confidence from Components-World.HK, 1 Year Warranty
Dowload PE29100A-X Details in PDFSee Product Specifications for product details.
Buy PE29100A-X with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PE29100A-X |
|---|---|
| Manufacturer | Peregrine Semiconductor |
| Description | HIGH-SPEED FET DRIVER 33 MHZ |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 250 pcs | |||
|---|---|---|---|---|---|
| $1.408 | $0.985 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | PE29100A-X | Manufacturer | Peregrine Semiconductor |
|---|---|---|---|
| Description | HIGH-SPEED FET DRIVER 33 MHZ | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34658 pcs | Data sheet | PE29100 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4 V ~ 5.5 V |
| Supplier Device Package | Die | Series | - |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns | Packaging | Cut Tape (CT) |
| Package / Case | Die | Other Names | 1046-1159-1 |
| Operating Temperature | -40°C ~ 125°C (TJ) | Number of Drivers | 2 |
| Mounting Type | Surface Mount | Manufacturer Standard Lead Time | 16 Weeks |
| Logic Voltage - VIL, VIH | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Type | - | High Side Voltage - Max (Bootstrap) | 100V |
| Gate Type | N-Channel MOSFET | Driven Configuration | Half-Bridge |
| Detailed Description | Half-Bridge Gate Driver IC Die | Current - Peak Output (Source, Sink) | 2A, 4A |
| Channel Type | Synchronous |
