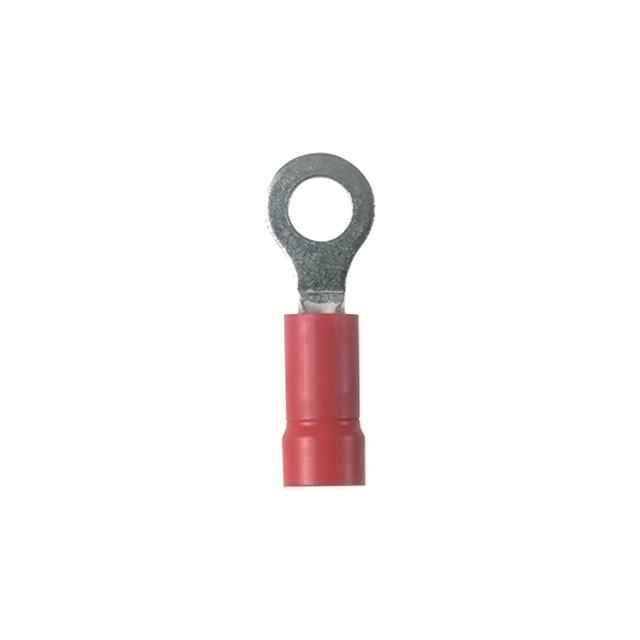

PV18-56R-MY
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PV18-56R-MY with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PV18-56R-MY with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PV18-56R-MY |
|---|---|
| Manufacturer | Panduit |
| Description | CONN RING CIRC 18-22AWG #5/16 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.15 | $0.148 | $0.145 | $0.142 | ||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.138 | $0.135 | $0.125 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PV18-56R-MY | Manufacturer | Panduit |
|---|---|---|---|
| Description | CONN RING CIRC 18-22AWG #5/16 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 174825 pcs | Data sheet | PV18-xxR Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.460" (11.68mm) | Thickness | 0.032" (0.81mm) |
| Termination | Crimp | Terminal Type | Circular |
| Stud/Tab Size | 5/16 Stud | Series | Pan-Term® |
| Packaging | Bulk | Other Names | 07498341498 298-11965 PV18-56R-MY-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | Vinyl | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Overall | 1.110" (28.19mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.150" (3.81mm) | Insulation | Insulated |
| Features | Brazed Seam, Serrated Termination | Detailed Description | Ring Terminal Connector 5/16 Stud Circular 18-22 AWG Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
