PN22-4F-C

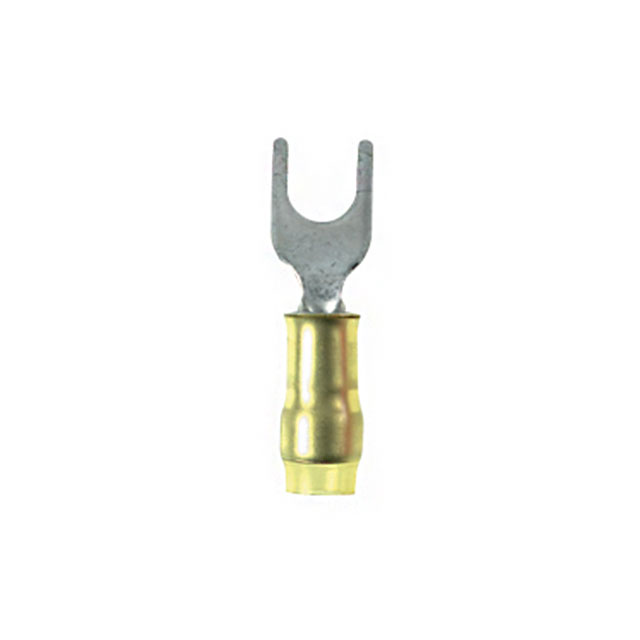

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PN22-4F-C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PN22-4F-C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PN22-4F-C |
|---|---|
| Manufacturer | Panduit |
| Description | CONN SPADE TERM 22-26AWG #4 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.402 | $0.393 | $0.383 | $0.373 | ||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.363 | $0.353 | $0.333 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PN22-4F-C | Manufacturer | Panduit |
|---|---|---|---|
| Description | CONN SPADE TERM 22-26AWG #4 YEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63816 pcs | Data sheet | PN22-4F/6F Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 22-26 AWG |
| Width - Outer Edges | 0.200" (5.08mm) | Tongue Inside Opening | 0.120" (3.05mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | 4 Stud | Series | Pan-Term® |
| Packaging | Bulk | Other Names | 298-15510 PN22-4F-C-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Termination | - | Length - Ring Center to Termination | - |
| Length - Overall | 0.670" (17.02mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.090" (2.29mm) | Insulation | Insulated |
| Features | - | Detailed Description | Yellow 4 Stud Spade Terminal Connector Crimp 22-26 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
