PN10-6LF-D

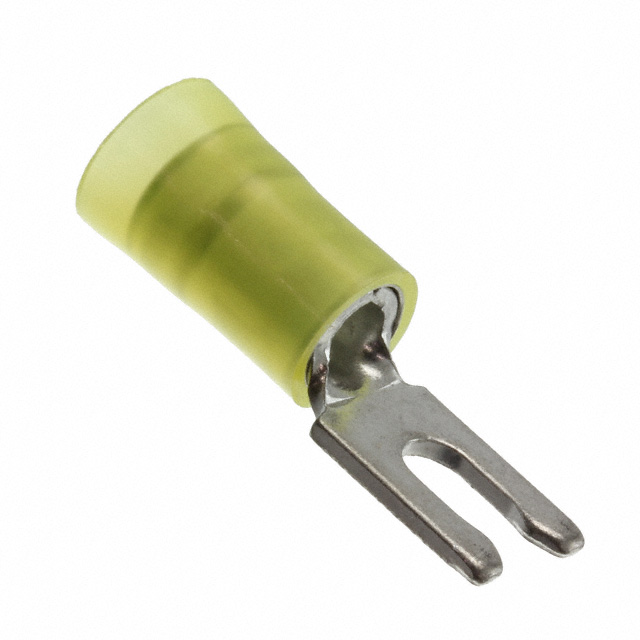

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PN10-6LF-D with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PN10-6LF-D with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PN10-6LF-D |
|---|---|
| Manufacturer | Panduit |
| Description | CONN SPADE TERM 10-12AWG #6 YEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.232 | $0.225 | $0.22 | $0.214 | ||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.204 | $0.198 | $0.182 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PN10-6LF-D | Manufacturer | Panduit |
|---|---|---|---|
| Description | CONN SPADE TERM 10-12AWG #6 YEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 114147 pcs | Data sheet | PNF10-xLF Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 10-12 AWG |
| Width - Outer Edges | 0.300" (7.62mm) | Tongue Inside Opening | 0.140" (3.56mm) |
| Termination | Crimp | Terminal Type | Spring, Snap |
| Stud/Tab Size | 6 Stud | Series | Pan-Term® |
| Packaging | Bulk | Other Names | 298-15436 PN10-6LF-D-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Termination | - | Length - Ring Center to Termination | - |
| Length - Overall | 1.020" (25.91mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.225" (5.72mm) | Insulation | Insulated |
| Features | Butted Seam, Serrated Termination | Detailed Description | Yellow 6 Stud Spade Terminal Connector Crimp 10-12 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Yellow |
