PMNF1-3F-C

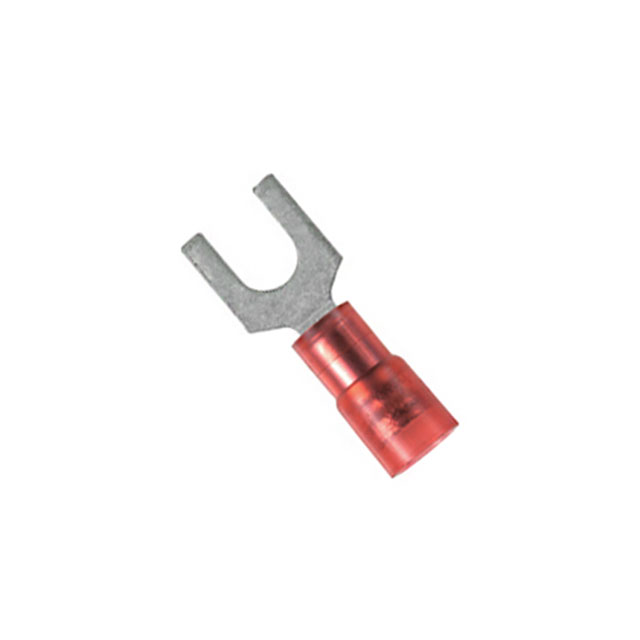

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PMNF1-3F-C with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy PMNF1-3F-C with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | PMNF1-3F-C |
|---|---|
| Manufacturer | Panduit |
| Description | CONN SPADE TERM 18-22AWG M3 RED |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.461 | $0.448 | $0.437 | $0.426 | ||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.414 | $0.403 | $0.38 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | PMNF1-3F-C | Manufacturer | Panduit |
|---|---|---|---|
| Description | CONN SPADE TERM 18-22AWG M3 RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99528 pcs | Data sheet | PMNF1-xF-x Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG |
| Width - Outer Edges | 0.230" (5.84mm) | Tongue Inside Opening | 0.200" (5.08mm) |
| Termination | Crimp | Terminal Type | Standard |
| Stud/Tab Size | M3 Stud | Series | Pan-Term® |
| Packaging | Bulk | Other Names | 07498384202 298-15410 PMNF1-3F-C-ND |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Termination | - | Length - Ring Center to Termination | - |
| Length - Overall | 0.830" (21.08mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | 0.148" (3.76mm) | Insulation | Insulated |
| Features | Serrated Termination | Detailed Description | Red M3 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Contact Material | Copper | Contact Finish | Tin |
| Color | Red |
