P18-P47-M

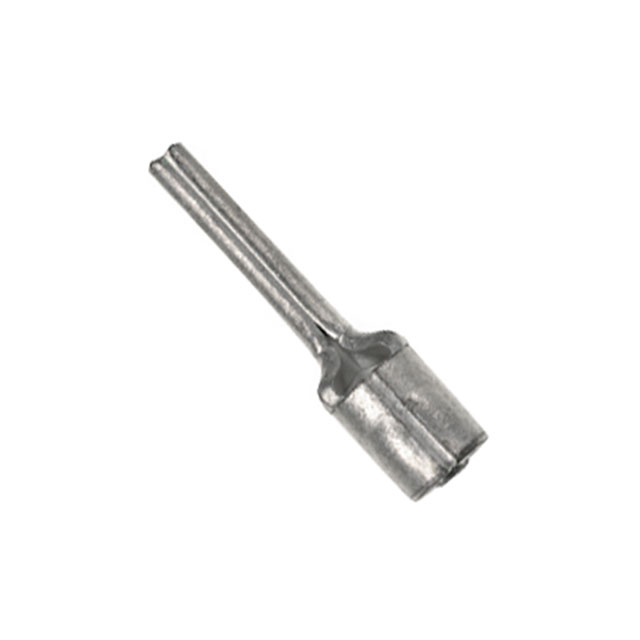

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy P18-P47-M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy P18-P47-M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | P18-P47-M |
|---|---|
| Manufacturer | Panduit |
| Description | CONN WIRE PIN TERM 18-22AWG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.122 | $0.12 | $0.117 | $0.115 | ||
| 100 pcs | 500 pcs | 1000 pcs | |||
| $0.112 | $0.109 | $0.101 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | P18-P47-M | Manufacturer | Panduit |
|---|---|---|---|
| Description | CONN WIRE PIN TERM 18-22AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 220620 pcs | Data sheet | P18-P47, P14-P47, P10-P55 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 18-22 AWG (1.5~0.5mm²) |
| Termination | Crimp | Series | Pan-Term® |
| Pin Diameter | Circular - 0.070" (1.78mm) Dia | Packaging | Bulk |
| Other Names | 298-15166 P18-P47-M-ND |
Moisture Sensitivity Level (MSL) | Not Applicable |
| Material - Insulation | - | Manufacturer Standard Lead Time | 4 Weeks |
| Length - Termination | 0.260" (6.60mm) | Length - Pin | 0.490" (12.45mm) |
| Length - Overall | 0.750" (19.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Diameter | - | Insulation | Non-Insulated |
| Features | Brazed Seam | Diameter - Barrel OD | 0.140" (3.56mm) |
| Diameter - Barrel ID | - | Detailed Description | Wire Pin Terminal Connector 18-22 AWG (1.5~0.5mm²) Pan-Term® Crimp |
| Contact Material | Copper | Contact Finish | Tin |
| Color | - |
