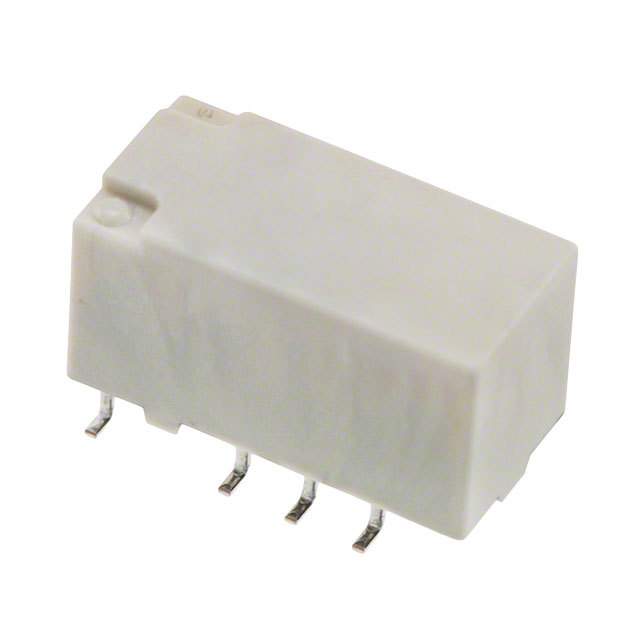

TX2SA-12V-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TX2SA-12V-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TX2SA-12V-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TX2SA-12V-1 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY TELECOM DPDT 1A 220V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 40 pcs | 80 pcs | |
|---|---|---|---|---|---|
| $1.402 | $1.315 | $1.169 | $1.11 | ||
| 120 pcs | 280 pcs | 520 pcs | 1000 pcs | ||
| $1.052 | $0.935 | $0.876 | $0.818 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TX2SA-12V-1 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY TELECOM DPDT 1A 220V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 41410 pcs | Data sheet | TX Series |
| Category | Relays | Turn On Voltage (Max) | 9 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | Gull Wing |
| Switching Voltage | 220VDC - Max | Series | TX |
| Release Time | 4ms | Relay Type | Telecom |
| Packaging | Tube | Other Names | 255-4235-5 |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 4ms |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Fully | Detailed Description | Telecom Relay DPDT (2 Form C) Surface Mount |
| Contact Rating (Current) | 1A | Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 1.03 kOhms |
| Coil Power | 140 mW | Coil Current | 11.7mA |
