ST1-L2-DC3V-F

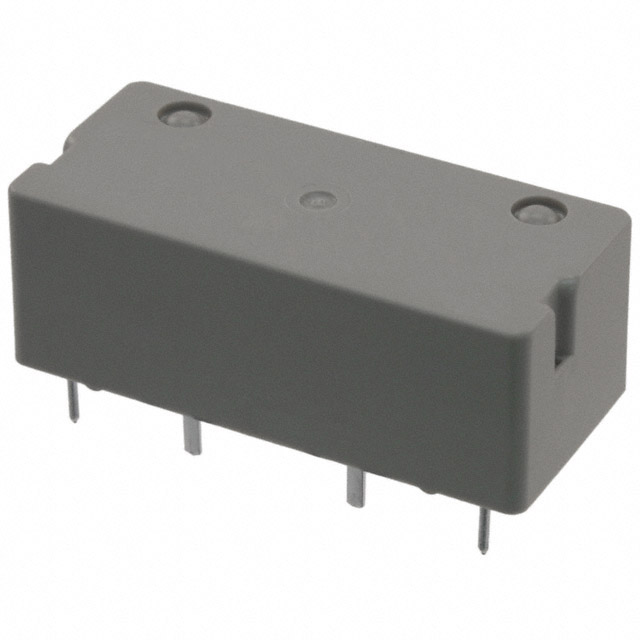

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST1-L2-DC3V-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ST1-L2-DC3V-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ST1-L2-DC3V-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GENERAL PURPOSE DPST 8A 3V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.592 | $4.971 | $4.723 | $4.474 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.225 | $3.853 | $3.604 | $3.418 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ST1-L2-DC3V-F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GENERAL PURPOSE DPST 8A 3V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10809 pcs | Data sheet | ST Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 2.4 VDC |
| Turn Off Voltage (Min) | - | Termination Style | PC Pin |
| Switching Voltage | 380VAC, 250VDC - Max | Series | ST |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 255-3616 ST1L2DC3VF |
| Operating Temperature | -40°C ~ 60°C | Operate Time | 10ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Fully | Detailed Description | General Purpose Relay DPST-NO/NC (1 Form A, 1 From B) 3VDC Coil Through Hole |
| Contact Rating (Current) | 8A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | DPST-NO/NC (1 Form A, 1 From B) | Coil Voltage | 3VDC |
| Coil Type | Latching, Dual Coil | Coil Resistance | 40 Ohms |
| Coil Power | 240 mW | Coil Current | 75.0mA |
