SK8603190L

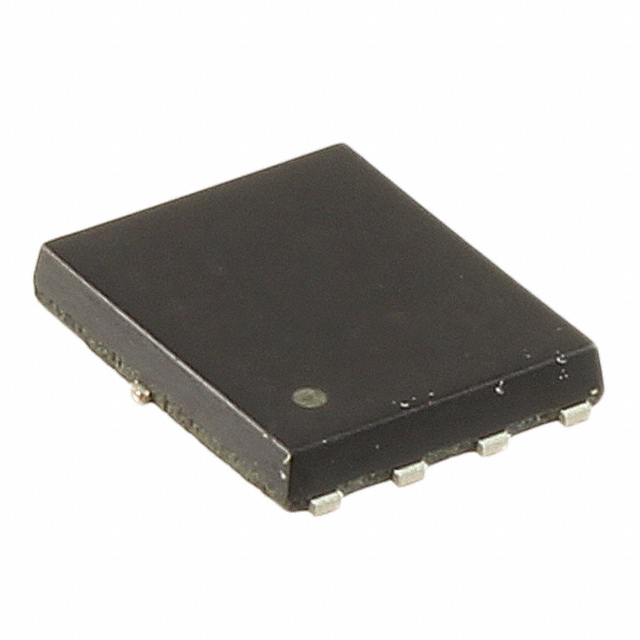

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SK8603190L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SK8603190L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SK8603190L |
|---|---|
| Manufacturer | Panasonic |
| Description | MOSFET N-CH 30V 12A 8HSO |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.399 | $0.351 | $0.27 | $0.20 | $0.16 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SK8603190L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | MOSFET N-CH 30V 12A 8HSO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 132882 pcs | Data sheet | SK8603190L Datasheet |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 1.01mA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | HSO8-F4-B | Series | - |
| Rds On (Max) @ Id, Vgs | 10 mOhm @ 8A, 10V | Power Dissipation (Max) | 2.7W (Ta), 19W (Tc) |
| Packaging | Cut Tape (CT) | Package / Case | 8-PowerSMD, Flat Leads |
| Other Names | P16271CT | Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1092pF @ 10V | Gate Charge (Qg) (Max) @ Vgs | 6.3nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 12A (Ta), 19A (Tc) 2.7W (Ta), 19W (Tc) Surface Mount HSO8-F4-B | Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 19A (Tc) |
