NN31002A-BB

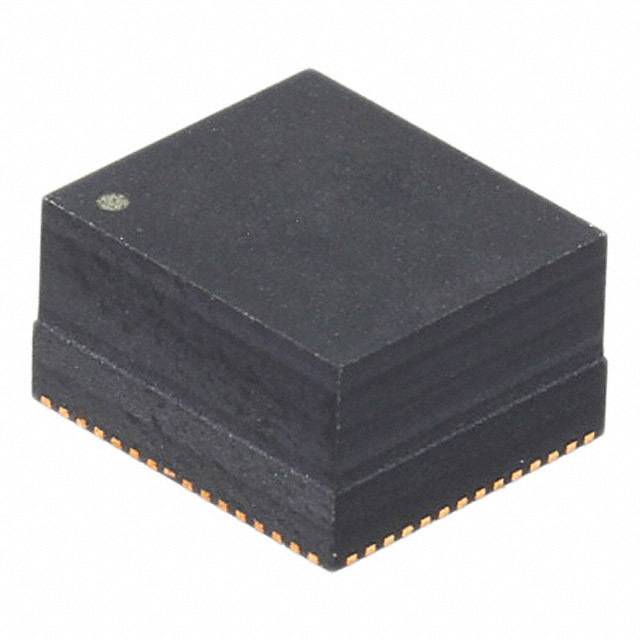

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NN31002A-BB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NN31002A-BB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NN31002A-BB |
|---|---|
| Manufacturer | Panasonic |
| Description | DC DC CONVERTER 0.6-5.5V 22W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $4.693 | $4.267 | $3.947 | $3.627 | $3.307 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NN31002A-BB | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DC DC CONVERTER 0.6-5.5V 22W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10422 pcs | Data sheet | NN31002A Datasheet |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 0.6 ~ 5.5 V |
| Voltage - Input (Min) | 4.5V | Voltage - Input (Max) | 28V |
| Type | Non-Isolated PoL Module | Supplier Device Package | 57-HQFN (7.5x6.5) |
| Size / Dimension | 0.33" L x 0.30" W x 0.19" H (8.5mm x 7.5mm x 4.7mm) | Series | - |
| Power (Watts) | 22W | Packaging | Cut Tape (CT) |
| Package / Case | 57-PowerBFQFN Module | Other Names | NN31002A-BBCT |
| Operating Temperature | -40°C ~ 85°C | Number of Outputs | 1 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | OCP, OTP, OVP, SCP, UVLO |
| Efficiency | 95% | Detailed Description | Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5 V 4A 4.5V - 28V Input |
| Current - Output (Max) | 4A | Base Part Number | NN3100 |
| Applications | ITE (Commercial) |
