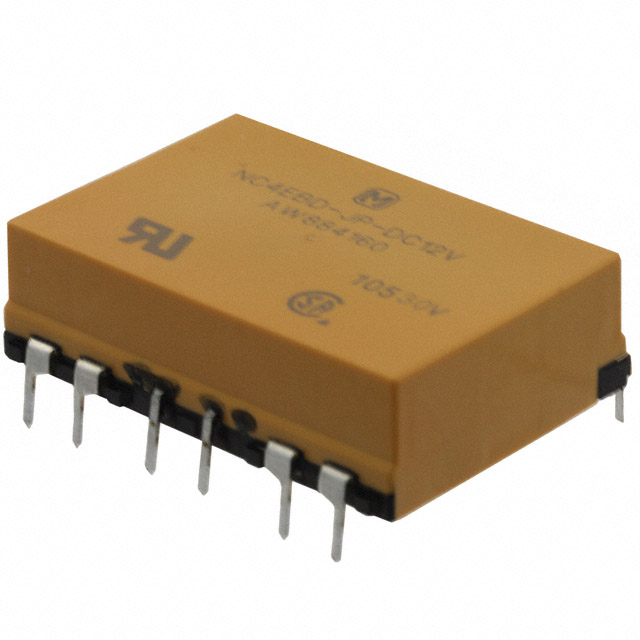

NC4EBD-JP-DC12V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NC4EBD-JP-DC12V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NC4EBD-JP-DC12V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NC4EBD-JP-DC12V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE 4PDT 5A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $7.107 | $6.318 | $6.002 | $5.686 | ||
| 100 pcs | 260 pcs | 500 pcs | |||
| $5.37 | $4.896 | $4.58 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | NC4EBD-JP-DC12V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE 4PDT 5A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6891 pcs | Data sheet | NC Series |
| Category | Relays | Turn On Voltage (Max) | 9.6 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC - Max | Series | NC |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Tray | Other Names | 255-2827 NC4EBD-JP-DC12V-ND NC4EBDJPDC12V |
| Operating Temperature | -40°C ~ 55°C | Operate Time | 20ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Amber | Detailed Description | General Purpose Relay 4PDT (4 Form C) 12VDC Coil Through Hole |
| Contact Rating (Current) | 5A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | 4PDT (4 Form C) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 200 Ohms |
| Coil Power | 720 mW | Coil Current | 60.0mA |
