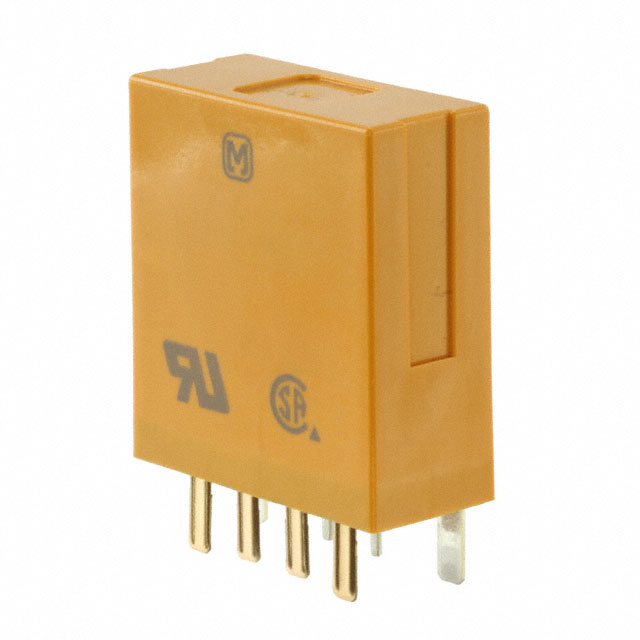

NC2EBD-DC24V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NC2EBD-DC24V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NC2EBD-DC24V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NC2EBD-DC24V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPDT 5A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $5.778 | $5.135 | $4.878 | $4.621 | ||
| 100 pcs | 260 pcs | 500 pcs | 1000 pcs | ||
| $4.365 | $3.979 | $3.723 | $3.53 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NC2EBD-DC24V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 5A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9769 pcs | Data sheet | NC Series |
| Category | Relays | Turn On Voltage (Max) | 19.2 VDC |
| Turn Off Voltage (Min) | 2.4 VDC | Termination Style | Plug In |
| Switching Voltage | 250VAC - Max | Series | NC |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 255-3999-5 NC2EBD-DC24V-ND NC2EBDDC24V |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 20ms |
| Mounting Type | Socketable | Moisture Sensitivity Level (MSL) | Not Applicable |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Amber | Detailed Description | General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable |
| Contact Rating (Current) | 5A | Contact Material | Silver Nickel (AgNi) |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 24VDC |
| Coil Type | Non Latching | Coil Resistance | 1.6 kOhms |
| Coil Power | 360 mW | Coil Current | 15.0mA |
