NC2D-JP-DC3V

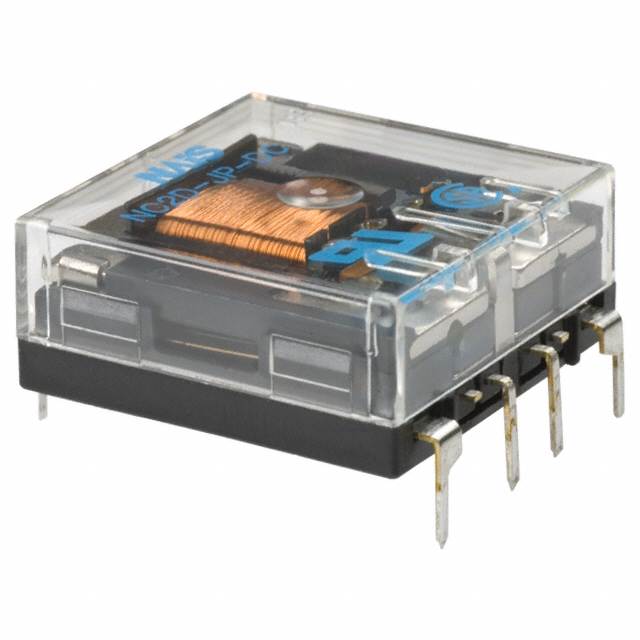

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NC2D-JP-DC3V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NC2D-JP-DC3V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NC2D-JP-DC3V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GENERAL PURPOSE DPDT 5A 3V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $4.438 | $3.946 | $3.749 | $3.551 | ||
| 100 pcs | 260 pcs | 500 pcs | 1000 pcs | ||
| $3.354 | $3.058 | $2.861 | $2.713 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | NC2D-JP-DC3V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GENERAL PURPOSE DPDT 5A 3V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14424 pcs | Data sheet | NC Series |
| Category | Relays | Turn On Voltage (Max) | 2.4 VDC |
| Turn Off Voltage (Min) | 0.3 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC - Max | Series | NC |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 255-5307 NC2D-JP-DC3V-ND |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 20ms |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 3VDC Coil Through Hole | Contact Rating (Current) | 5A |
| Contact Material | Silver Nickel (AgNi) | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 3VDC | Coil Type | Non Latching |
| Coil Resistance | 25 Ohms | Coil Power | 360 mW |
| Coil Current | 120mA |
