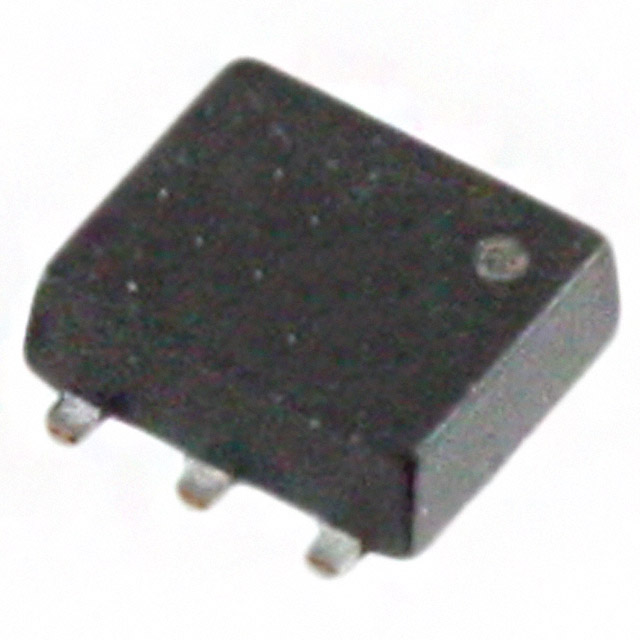

MTM761110LBF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MTM761110LBF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MTM761110LBF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MTM761110LBF |
|---|---|
| Manufacturer | Panasonic |
| Description | MOSFET P-CH 12V 4A WSMINI6 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.089 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MTM761110LBF | Manufacturer | Panasonic |
|---|---|---|---|
| Description | MOSFET P-CH 12V 4A WSMINI6 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 213479 pcs | Data sheet | MTM761110LBF |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 1V @ 1mA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | WSMini6-F1-B | Series | - |
| Rds On (Max) @ Id, Vgs | 34 mOhm @ 1A, 4.5V | Power Dissipation (Max) | 700mW (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SMD, Flat Leads |
| Other Names | MTM761110LBF-ND MTM761110LBFTR |
Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 11 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 1400pF @ 10V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Drain to Source Voltage (Vdss) | 12V | Detailed Description | P-Channel 12V 4A (Ta) 700mW (Ta) Surface Mount WSMini6-F1-B |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
