Home > Products > Motors, Solenoids, Driver Boards/Modules > Motor Driver Boards, Modules > MADHT1505E

MADHT1505E

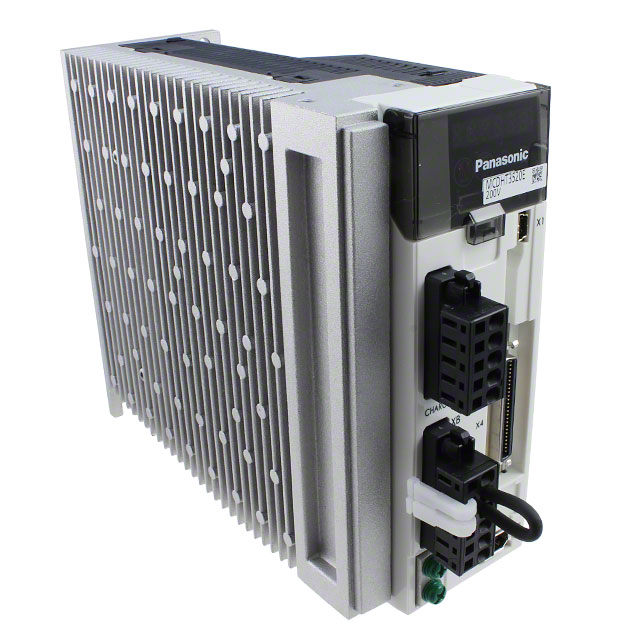

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MADHT1505E with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MADHT1505E
Manufacturer	Panasonic
Description	SERVO DRIVER 10A 240V LOAD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 216 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$176.433

Product parameter
Data sheet

Product parameter

Part Number	MADHT1505E	Manufacturer	Panasonic
Description	SERVO DRIVER 10A 240V LOAD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	216 pcs	Data sheet	MINAS A5II/A5 Series Manual A5 Series MINAS Catalog
Category	Motors, Solenoids, Driver Boards/Modules	Weight	1.7 lbs (771.1g)
Wattage - Load	200W	Voltage - Supply	200 ~ 240VAC
Voltage - Load	240 V	Type	Module
Series	MINAS A5E	Operating Temperature	0°C ~ 55°C
Number of Motors	1	Mounting Type	Chassis Mount
Motor Type	Servo	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	RS-232, RS-485, USB	For Use With/Related Products	MINAS A5 Series
Features	-	Detailed Description	Servo AC 200 ~ 240VAC Supply 10A 240 V Load
Current - Output	10A	Control / Drive Type	Servo AC
