MA4ZD0300L

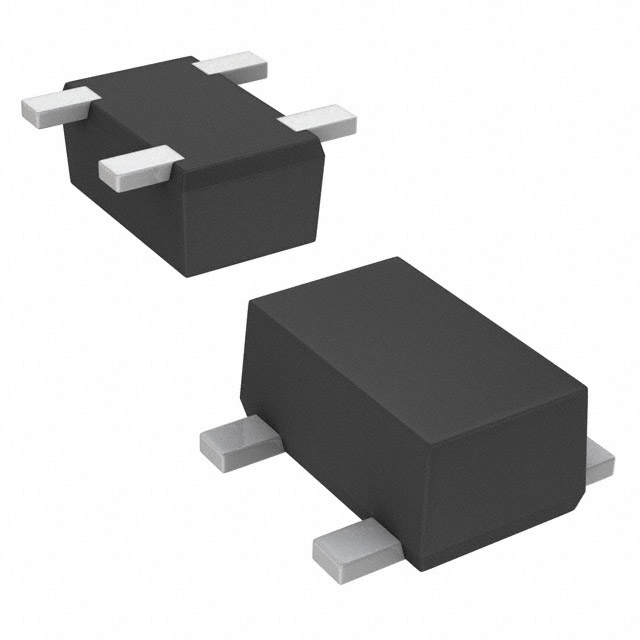

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MA4ZD0300L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MA4ZD0300L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MA4ZD0300L |
|---|---|
| Manufacturer | Panasonic |
| Description | DIODE ARRAY SCHOTTKY 45V SMINI4 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MA4ZD0300L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DIODE ARRAY SCHOTTKY 45V SMINI4 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4477 pcs | Data sheet | MA4ZD03 |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 600mV @ 100mA |
| Voltage - DC Reverse (Vr) (Max) | 45V | Supplier Device Package | SMini4-F1 |
| Speed | Small Signal =< 200mA (Io), Any Speed | Series | - |
| Reverse Recovery Time (trr) | 1.2ns | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Flat Leads | Other Names | MA4ZD03 MA4ZD0300LTR MA4ZD03TR MA4ZD03TR-ND |
| Operating Temperature - Junction | 125°C (Max) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky | Diode Configuration | 2 Independent |
| Detailed Description | Diode Array 2 Independent Schottky 45V 100mA (DC) Surface Mount 4-SMD, Flat Leads | Current - Reverse Leakage @ Vr | 5µA @ 40V |
| Current - Average Rectified (Io) (per Diode) | 100mA (DC) | Base Part Number | MA4ZD03 |
