MA2Q70500L

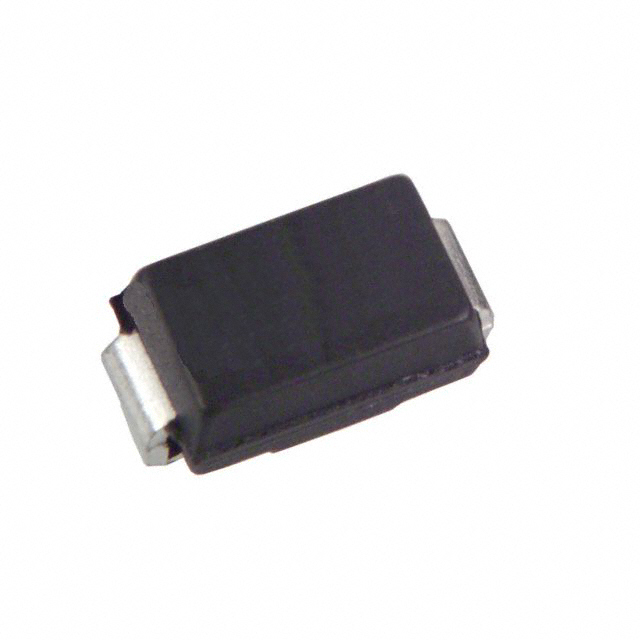

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MA2Q70500L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MA2Q70500L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MA2Q70500L |
|---|---|
| Manufacturer | Panasonic |
| Description | DIODE SCHOTTKY 30V 1.5A NMINIP2 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MA2Q70500L | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DIODE SCHOTTKY 30V 1.5A NMINIP2 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5066 pcs | Data sheet | MA2Q705 Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 370mV @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 30V | Supplier Device Package | NMiniP2-J1 |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Reverse Recovery Time (trr) | 50ns | Packaging | Tape & Reel (TR) |
| Package / Case | DO-214BA | Other Names | MA10705-(TX) MA10705-00L MA10705-TX MA10705TR MA10705TR-ND MA2Q70500LTR |
| Operating Temperature - Junction | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky | Detailed Description | Diode Schottky 30V 1.5A Surface Mount NMiniP2-J1 |
| Current - Reverse Leakage @ Vr | 3mA @ 30V | Current - Average Rectified (Io) | 1.5A |
| Capacitance @ Vr, F | 90pF @ 10V, 1MHz | Base Part Number | MA2Q705 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
