MA2C70000F

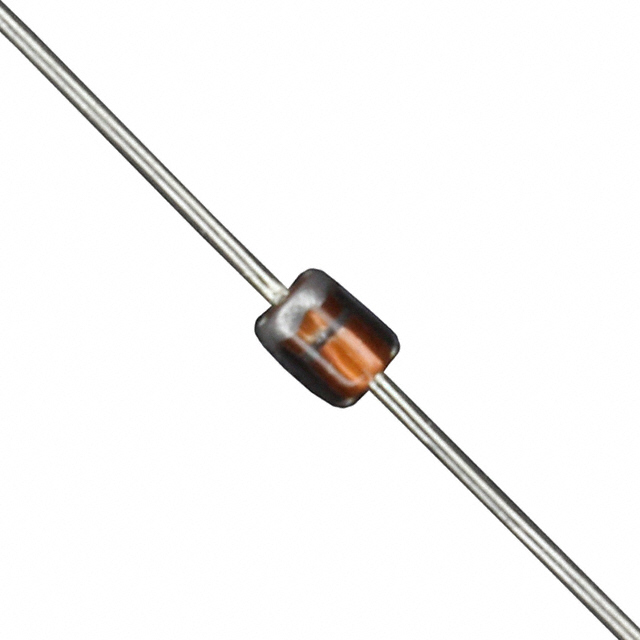

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MA2C70000F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy MA2C70000F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | MA2C70000F |
|---|---|
| Manufacturer | Panasonic |
| Description | DIODE SCHOTTKY 15V 30MA DO34 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | MA2C70000F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | DIODE SCHOTTKY 15V 30MA DO34 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4550 pcs | Data sheet | MA2C700(A) Datasheet |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 1V @ 30mA |
| Voltage - DC Reverse (Vr) (Max) | 15V | Supplier Device Package | DO34-A1 |
| Speed | Small Signal =< 200mA (Io), Any Speed | Series | - |
| Reverse Recovery Time (trr) | 1ns | Packaging | Tape & Box (TB) |
| Package / Case | DO-204AG, DO-34, Axial | Other Names | MA2C70000FTB |
| Operating Temperature - Junction | 125°C (Max) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky | Detailed Description | Diode Schottky 15V 30mA (DC) Through Hole DO34-A1 |
| Current - Reverse Leakage @ Vr | 100nA @ 15V | Current - Average Rectified (Io) | 30mA (DC) |
| Capacitance @ Vr, F | 1.3pF @ 1V, 1MHz | Base Part Number | MA2C700 |
