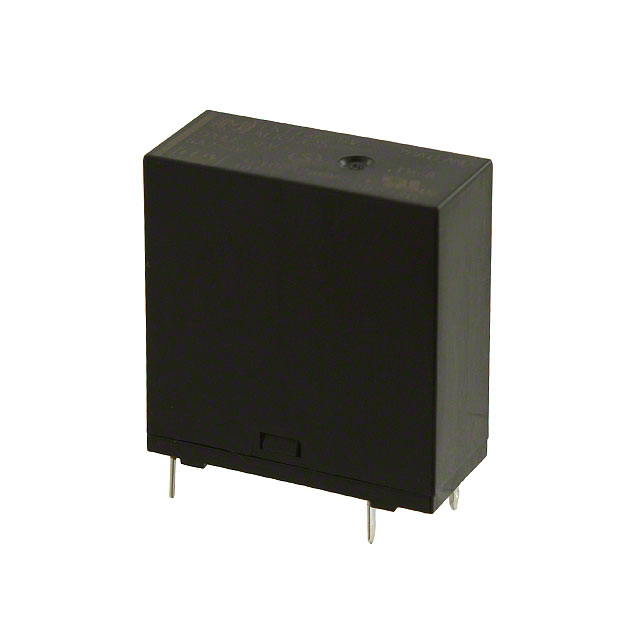

LKT1AF-9V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LKT1AF-9V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LKT1AF-9V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LKT1AF-9V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 5A 9V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.611 | $0.572 | $0.508 | $0.483 | $0.458 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.407 | $0.381 | $0.356 | $0.343 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LKT1AF-9V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 5A 9V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66968 pcs | Data sheet | LK-T Relays |
| Category | Relays | Turn On Voltage (Max) | 6.3 VDC |
| Turn Off Voltage (Min) | 0.9 VDC | Termination Style | PC Pin |
| Switching Voltage | 277VAC - Max | Series | LK-T |
| Release Time | 5ms | Relay Type | General Purpose |
| Packaging | Tray | Other Names | 255-3500 LKT1AF9V |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 15ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Flux Protection | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 9VDC Coil Through Hole |
| Contact Rating (Current) | 5A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 9VDC |
| Coil Type | Non Latching | Coil Resistance | 324 Ohms |
| Coil Power | 250 mW | Coil Current | 27.8mA |
