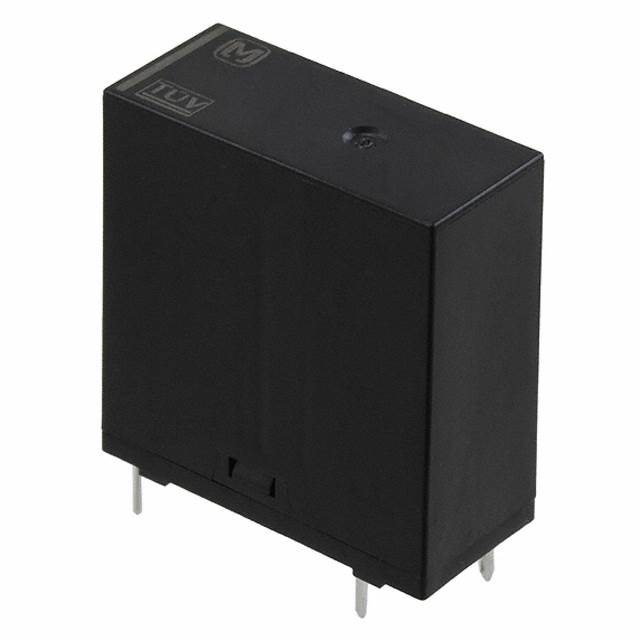

LKG1AF-12V-16
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LKG1AF-12V-16 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy LKG1AF-12V-16 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | LKG1AF-12V-16 |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 16A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.862 | $0.809 | $0.719 | $0.683 | $0.647 | |
| 260 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.575 | $0.539 | $0.503 | $0.485 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | LKG1AF-12V-16 | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 16A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63960 pcs | Data sheet | LK-G Relays |
| Category | Relays | Turn On Voltage (Max) | 9 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | PC Pin |
| Switching Voltage | 277VAC - Max | Series | LK-G |
| Release Time | 20ms | Relay Type | General Purpose |
| Packaging | Tube | Other Names | 255-4006-5 LKG1AF-12V-16-ND LKG1AF12V16 |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 15ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Flux Protection | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole |
| Contact Rating (Current) | 16A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 12VDC |
| Coil Type | Non Latching | Coil Resistance | 272 Ohms |
| Coil Power | 530 mW | Coil Current | 44.2mA |
