JW2SN-DC6V

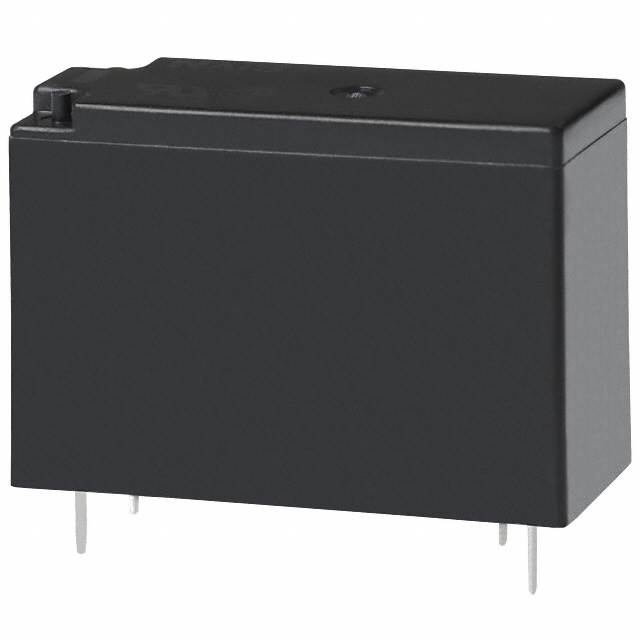

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JW2SN-DC6V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JW2SN-DC6V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JW2SN-DC6V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GENERAL PURPOSE DPDT 5A 6V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.307 | $1.225 | $1.089 | $1.034 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.98 | $0.871 | $0.817 | $0.762 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JW2SN-DC6V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GENERAL PURPOSE DPDT 5A 6V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51338 pcs | Data sheet | JW Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 4.2 VDC |
| Turn Off Voltage (Min) | 0.6 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC, 30VDC - Max | Series | JW |
| Release Time | 5ms | Relay Type | General Purpose |
| Packaging | Tray | Other Names | 255-1735 JW2SNDC6V |
| Operating Temperature | -40°C ~ 60°C | Operate Time | 15ms |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Fully |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 6VDC Coil Through Hole | Contact Rating (Current) | 5A |
| Contact Material | Silver Nickel (AgNi) | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 6VDC | Coil Type | Non Latching |
| Coil Resistance | 68 Ohms | Coil Power | 530 mW |
| Coil Current | 88.0mA |
