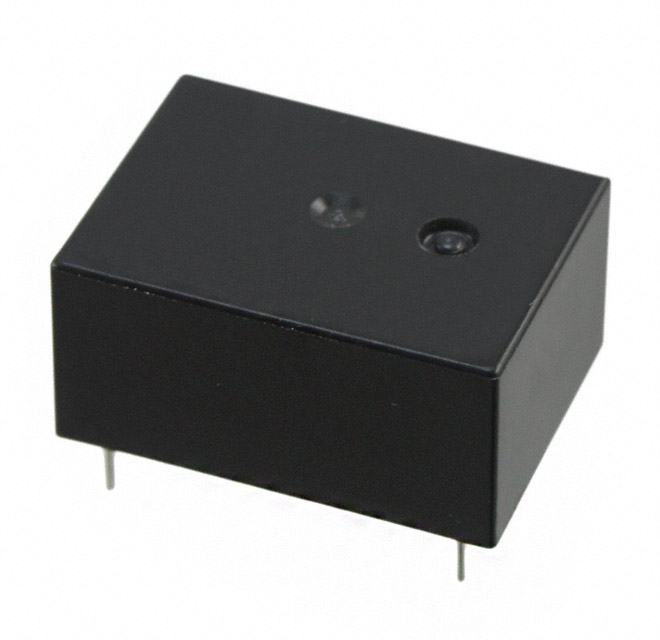

JVN1A-4.5V-F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JVN1A-4.5V-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JVN1A-4.5V-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JVN1A-4.5V-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 16A 4.5V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.597 | $2.436 | $2.165 | $2.057 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.949 | $1.732 | $1.624 | $1.516 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JVN1A-4.5V-F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 16A 4.5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24667 pcs | Data sheet | JV-N Series |
| Category | Relays | Turn On Voltage (Max) | 3.38 VDC |
| Turn Off Voltage (Min) | 0.23 VDC | Termination Style | PC Pin |
| Switching Voltage | 277VAC, 30VDC - Max | Series | JV-N |
| Release Time | 5ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-2360 JVN1A45VF |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 12ms |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Fully |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 4.5VDC Coil Through Hole | Contact Rating (Current) | 16A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 4.5VDC | Coil Type | Non Latching |
| Coil Resistance | 101 Ohms | Coil Power | 200 mW |
| Coil Current | 44.4mA |
