JTN1AS-TMP-F-DC48V

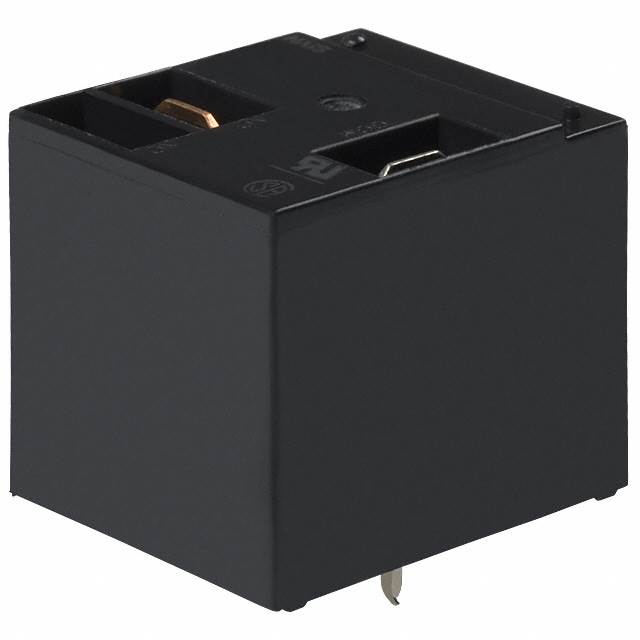

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JTN1AS-TMP-F-DC48V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JTN1AS-TMP-F-DC48V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JTN1AS-TMP-F-DC48V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 30A 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $1.72 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JTN1AS-TMP-F-DC48V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 30A 48V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21023 pcs | Data sheet | JT-N Series |
| Category | Relays | Turn On Voltage (Max) | 36 VDC |
| Turn Off Voltage (Min) | 4.8 VDC | Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Switching Voltage | 277VAC - Max | Series | JT-N |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | JTN1AS-TMP-FDC48V |
| Operating Temperature | -55°C ~ 85°C | Operate Time | 20ms |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Insulation - Class F, Sealed - Fully |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 48VDC Coil Through Hole | Contact Rating (Current) | 30A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 48VDC | Coil Type | Non Latching |
| Coil Resistance | 2.87 kOhms | Coil Power | 800 mW |
| Coil Current | 16.7mA |
