JS1A-B-48V-F

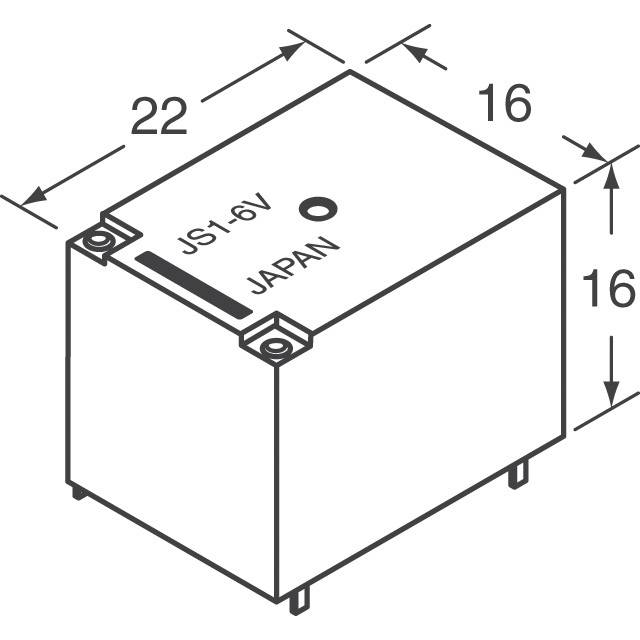

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JS1A-B-48V-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JS1A-B-48V-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JS1A-B-48V-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 10A 48V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.774 | $0.725 | $0.645 | $0.612 | $0.58 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.516 | $0.483 | $0.451 | $0.435 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JS1A-B-48V-F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 10A 48V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88602 pcs | Data sheet | JS Series |
| Category | Relays | Turn On Voltage (Max) | 33.6 VDC |
| Turn Off Voltage (Min) | 4.8 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC, 100VDC - Max | Series | JS |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-6183 JS1A-B-48V-F-ND |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 10ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class B, Sealed - Fully | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 48VDC Coil Through Hole |
| Contact Rating (Current) | 10A | Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 48VDC |
| Coil Type | Non Latching | Coil Resistance | 6.4 kOhms |
| Coil Power | 360 mW | Coil Current | 7.5mA |
