JS1A-12V-F

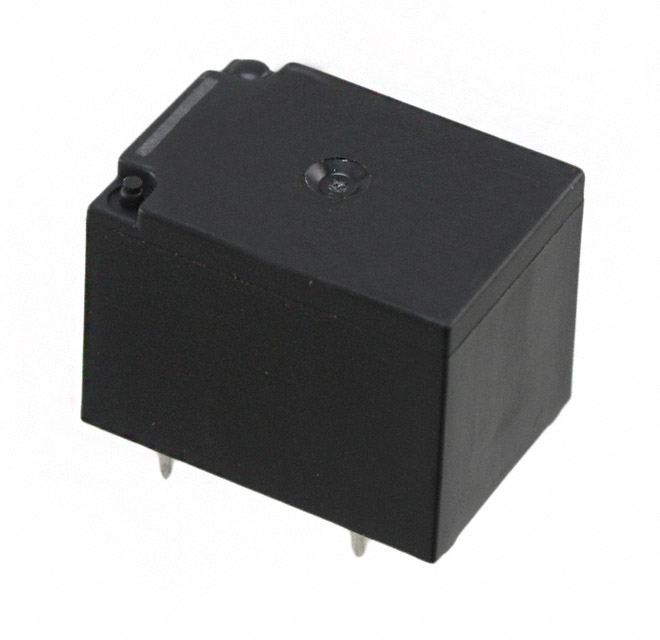

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JS1A-12V-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JS1A-12V-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JS1A-12V-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 10A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.576 | $0.541 | $0.481 | $0.457 | $0.433 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.385 | $0.361 | $0.337 | $0.325 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JS1A-12V-F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 10A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 73446 pcs | Data sheet | JS Series |
| Category | Relays | Turn On Voltage (Max) | 8.4 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC, 100VDC - Max | Series | JS |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-2081 JS1A-12V-F-ND JS1A12VF |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 10ms |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Fully |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole | Contact Rating (Current) | 10A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 12VDC | Coil Type | Non Latching |
| Coil Resistance | 400 Ohms | Coil Power | 360 mW |
| Coil Current | 30.0mA |
