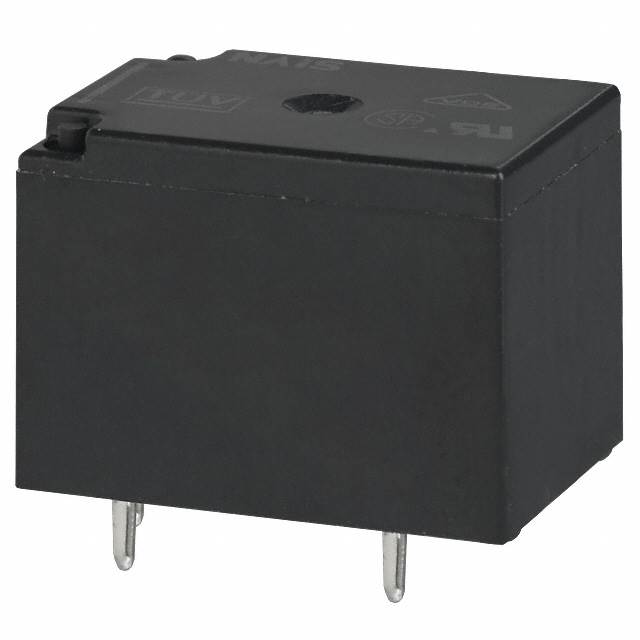

JS1-B-24V-F
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JS1-B-24V-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JS1-B-24V-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JS1-B-24V-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPDT 10A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.668 | $0.626 | $0.556 | $0.528 | $0.50 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.445 | $0.417 | $0.389 | $0.375 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | JS1-B-24V-F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 10A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 89435 pcs | Data sheet | JS Series |
| Category | Relays | Turn On Voltage (Max) | 16.8 VDC |
| Turn Off Voltage (Min) | 2.4 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC, 100VDC - Max | Series | JS |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-1716 JS1B24VF |
| Operating Temperature | -40°C ~ 85°C | Operate Time | 10ms |
| Mounting Type | Through Hole | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Insulation - Class B, Sealed - Fully |
| Detailed Description | General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole | Contact Rating (Current) | 10A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPDT (1 Form C) |
| Coil Voltage | 24VDC | Coil Type | Non Latching |
| Coil Resistance | 1.6 kOhms | Coil Power | 360 mW |
| Coil Current | 15.0mA |
