JQ1APF-F-12V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JQ1APF-F-12V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JQ1APF-F-12V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JQ1APF-F-12V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 10A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JQ1APF-F-12V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 10A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4234 pcs | Data sheet | JQ Series |
| Category | Relays | Turn On Voltage (Max) | 9.6 VDC |
| Turn Off Voltage (Min) | 0.6 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC, 110VDC - Max | Series | JQ |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Operating Temperature | -40°C ~ 70°C |
| Operate Time | 20ms | Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole | Contact Rating (Current) | 10A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 12VDC | Coil Type | Non Latching |
| Coil Resistance | 720 Ohms | Coil Power | 200 mW |
| Coil Current | 16.7mA |
- Related products
- Related news
Related products
- Part#:
JQ1APE-24V-H12 - Manufacturers:
Panasonic Electric Works - Description:
RELAY GEN PURPOSE SPST 10A 24V - In Stock:
5701
- Part#:
JQ1P-24V-F - Manufacturers:
Panasonic - Description:
RELAY GEN PURPOSE SPDT 10A 24V - In Stock:
34575
- Part#:

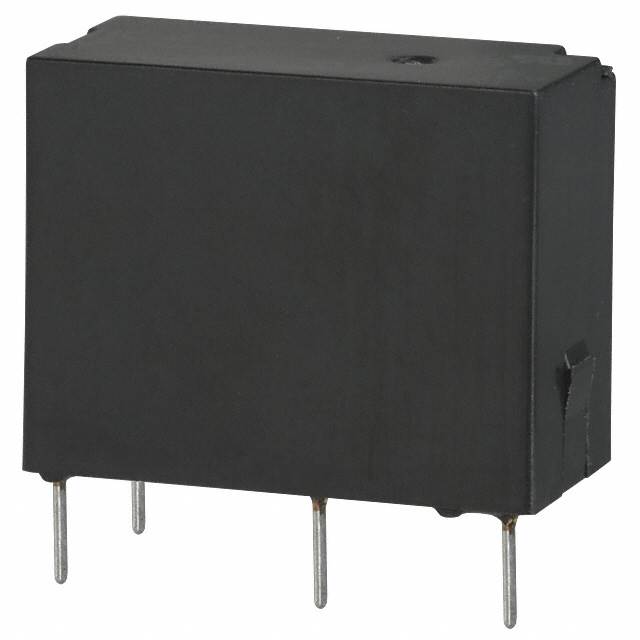

JQ1P-18V-F - Manufacturers:
