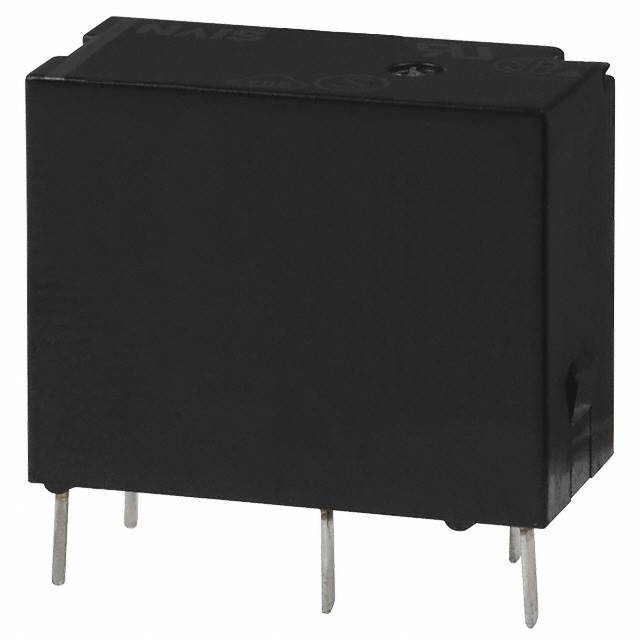

JK1APF-24V
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JK1APF-24V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JK1APF-24V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JK1APF-24V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 8A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JK1APF-24V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 8A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4310 pcs | Data sheet | JK Relays |
| Category | Relays | Turn On Voltage (Max) | 19.2 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC, 110VDC - Max | Series | JK |
| Release Time | 2ms | Relay Type | General Purpose |
| Packaging | Bulk | Operating Temperature | -40°C ~ 70°C |
| Operate Time | 4ms | Mounting Type | Through Hole |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Sealed - Flux Protection |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole | Contact Rating (Current) | 8A |
| Contact Material | Silver Alloy | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 24VDC | Coil Type | Non Latching |
| Coil Resistance | 2.88 kOhms | Coil Power | 200 mW |
| Coil Current | 8.3mA |
