JC1AF-DC12V-F

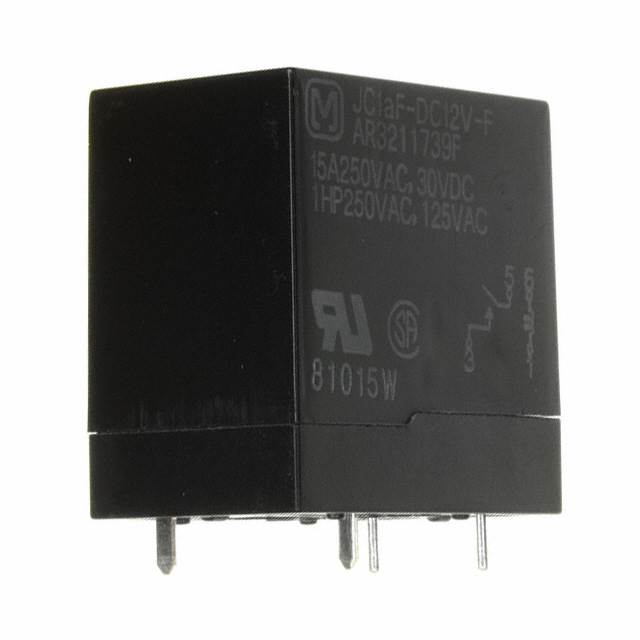

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy JC1AF-DC12V-F with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy JC1AF-DC12V-F with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | JC1AF-DC12V-F |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE SPST 15A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | JC1AF-DC12V-F | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 15A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4436 pcs | Data sheet | JC Relays |
| Category | Relays | Turn On Voltage (Max) | 9.6 VDC |
| Turn Off Voltage (Min) | 1.2 VDC | Termination Style | PC Pin |
| Switching Voltage | 250VAC - Max | Series | JC |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 255-2381 |
| Operating Temperature | -50°C ~ 60°C | Operate Time | 30ms |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Detailed Description | General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole | Contact Rating (Current) | 15A |
| Contact Material | Silver Tin Oxide (AgSnO) | Contact Form | SPST-NO (1 Form A) |
| Coil Voltage | 12VDC | Coil Type | Non Latching |
| Coil Resistance | 160 Ohms | Coil Power | 900 mW |
| Coil Current | 75.0mA |
