HL2-L-AC24V

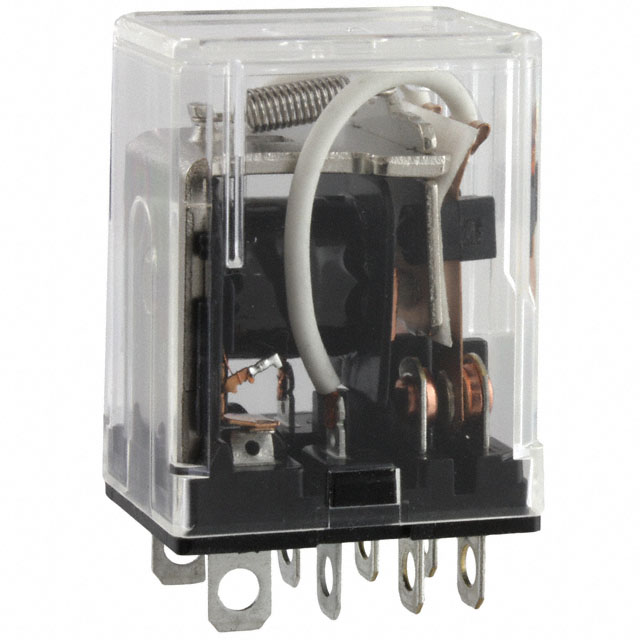

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy HL2-L-AC24V with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy HL2-L-AC24V with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | HL2-L-AC24V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPDT 10A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | HL2-L-AC24V | Manufacturer | Panasonic |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 10A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5845 pcs | Data sheet | HL Series Datasheet |
| Category | Relays | Turn On Voltage (Max) | 19.2 VAC |
| Turn Off Voltage (Min) | 7.2 VAC | Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Switching Voltage | 125VAC - Nom | Series | HL |
| Release Time | 10ms | Relay Type | General Purpose |
| Packaging | Bulk | Operating Temperature | -50°C ~ 70°C |
| Operate Time | 10ms | Mounting Type | Socketable |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | LED Indicator |
| Detailed Description | General Purpose Relay DPDT (2 Form C) 24VAC Coil Socketable | Contact Rating (Current) | 10A |
| Contact Material | Silver Alloy | Contact Form | DPDT (2 Form C) |
| Coil Voltage | 24VAC | Coil Type | Non Latching |
| Coil Power | 1.2 VA | Coil Current | 50.0mA |
